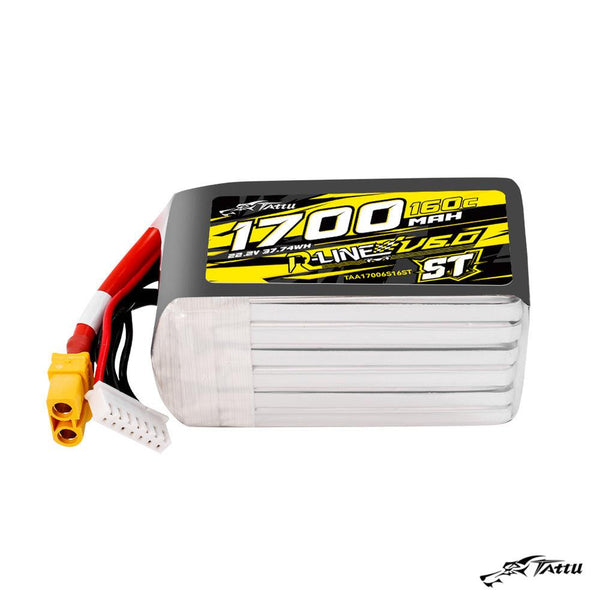

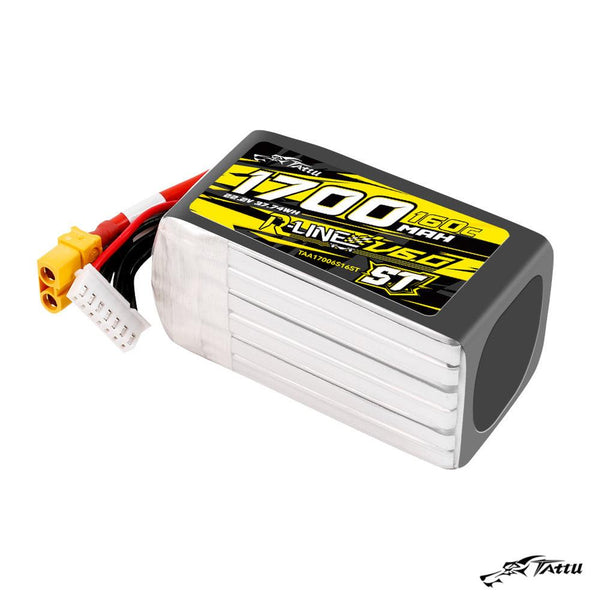

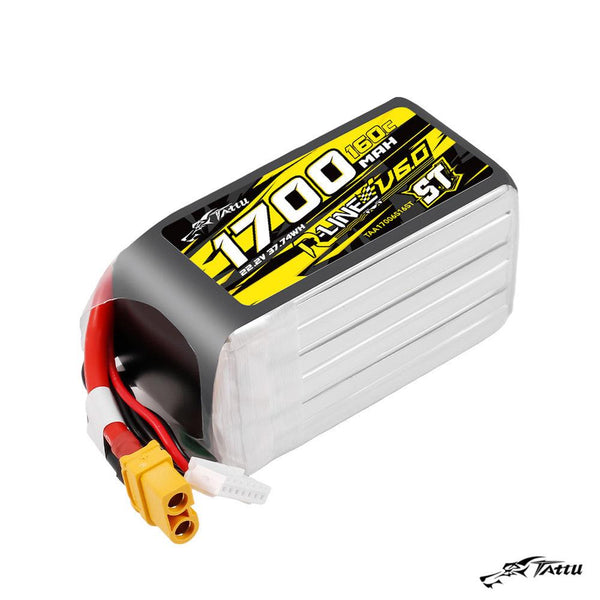

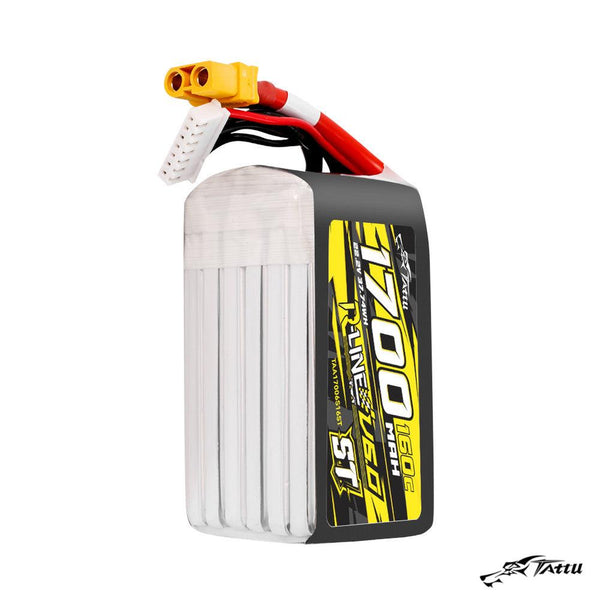

The Tattu R-Line Version 6.0 1700mAh ST is an industrial-standard power solution engineered for elite FPV racing, high-intensity freestyle, and tactical sUAS operations. Representing the latest advancement in LiPo technology, the V6 series utilizes a semi-solid electrolyte and a refined lithium salt formula. This shift in chemistry achieves a 26% increase in volumetric energy density and a 17% increase in gravimetric energy density compared to previous generations, while significantly reducing liquid content for enhanced thermal stability and safety.
This ST (Stick Version) features the industry-standard "long" form factor, providing flexible placement options on a wide variety of airframes. Utilizing 3D Conductive Technology—which incorporates carbon nanotubes, graphite, and graphene—the V6 ensures a stable, high-current output even during extreme 160C bursts. The reduced internal resistance (IR) translates to a faster throttle response and more consistent power delivery towards the end of the discharge cycle. For government sUAS contractors, aerospace engineering labs, and professional cinematic drone pilots, the R-Line V6 1700mAh ST represents the definitive balance of high-capacity endurance and uncompromising power.
1. Higher Energy Density, Safer Design
With a new lithium salt formula and semi-solid electrolyte, the battery reaches a volumetric energy density of 316Wh/L (+26%) and a gravimetric energy density of 160Wh/kg (+17%). Reduced liquid content also means better safety and longer battery life.
2. Stable Power with 3D Conductive Tech
A combination of conductive graphite, carbon nanotubes, and graphene builds a solid 3D network, allowing efficient and steady high-current output. Power remains stable even during intense bursts.
3. Faster Response with Nano Materials
Nano-particle material and porous electrode structure shorten ion diffusion paths and reduce internal resistance (IR) by 20%, enabling quicker throttle response and stronger bursts of power.
4. Stronger Structure, Better Durability
The improved internal design enhances heat dissipation and impact resistance. Whether you’re crashing in freestyle or pushing hard in a race, R-Line V6 stays dependable.
Specifications
· Minimum Capacity: 1700mAh
· Configuration: 6S / 22.2V / 6 Cells
· Discharge Rate: 160C
· Net Weight(±20g): 246g
· Dimensions: 78.48x38.43x40.85mm(L x W x H)
· Charge Plug: JST-XHR
· Discharge Plug: XT60
Ideal For
· FPV Racing, Freestyle and Cinematic.

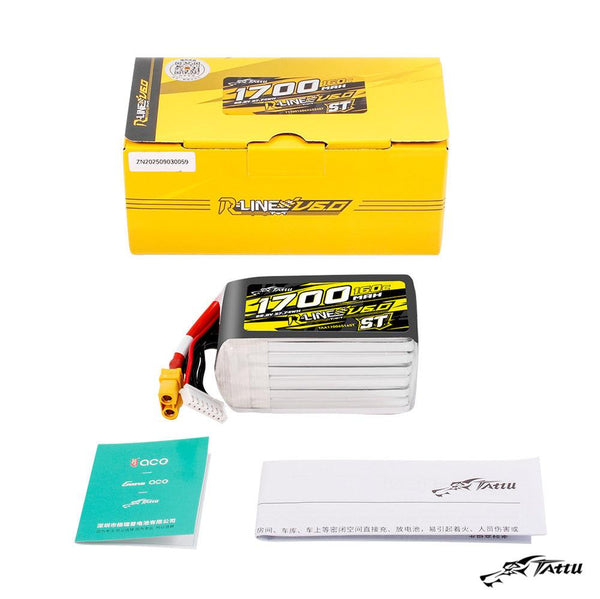

Including
- 1 x Tattu R-Line Version 6.0 1700mAh 160C 6S 22.2V ST Lipo Battery Pack with XT60 Plug
