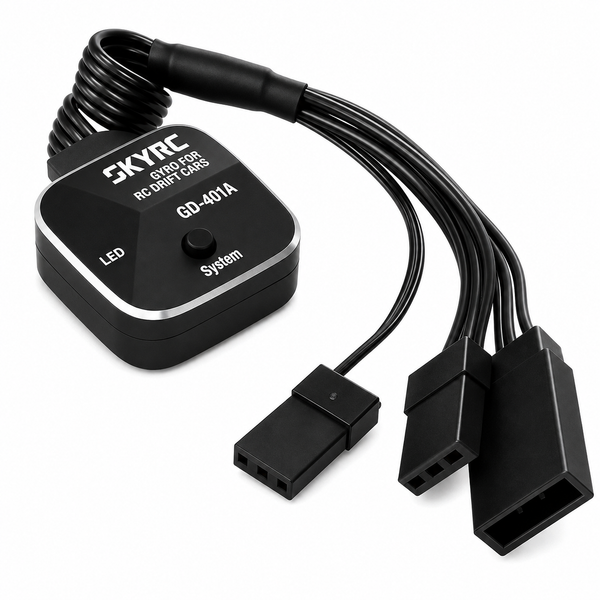

SkyRC GD-401A Drift Gyro for RC Cars with 9 Preset Curves & One-Touch Reverse

Feel the STABILITY!

From Core to Curve

A 32-bit processor works seamlessly with the high-precision MEMS gyro to calculate and correct every deviation—delivering control that feels natural and fluid.

Tuned for RWD drift cars with 9 preset curves, and compatible with touring, rally, and short course models.

9 Preset Curves. For Every Drift.

·       From smooth to sharp, GD-401A’s 9 preset curves adapt to your driving style—beginner or pro.

·       A single button cycles through modes (1–9).

·       At start-up, green LED flashes display the selected curve.

·       Adapt to every track. Match every drift.

Sense and Stability

·       This gyro continuously detects and corrects steering deviations, delivering smoother handling and a more focused driving experience.

Dial in Your Endpoints

Take full control with EPA (End Point Adjustment), fine-tuning servo travel within its 180° range to avoid interference and oversteer.

·       Precision, simplified.

·       Every turn, just right!

Different Mounts, Same Control

·       Different chassis, different layouts—sometimes your control logic ends up reversed.

·       With one-touch reverse setup, the gyro adapts automatically to your installation.

·       No second-guessing directions—just focus on nailing every corner with precision.

LED Status At a Glance

·       Red LED Flashing: No signal received; transmitter may not be powered on.

·       Solid Green LED: Transmitter disconnected.

·       Flashing Green LED: Indicates the current curve level. The LED flashes in a loop from 1 to 9 times to show the active curve.

Durable. Designed to Fit.

·       So compact, it virtually disappears into your chassis—lightweight, seamless, and never in the way during assembly or wiring.

·       CNC-machined aluminium provides rigidity and efficient cooling, all wrapped in a premium finish that feels as refined as it looks.

Specifications:

·       Case Material: CNC 6063 Aluminium

·       Dimensions:22 × 21 × 9 mm

·       Weight: Approx. 12 g

·       Input Signal: PWM (50–333 Hz)

·       Output Signal to Servo:1520 μs (50–333 Hz)

·       Operating Voltage:4.8–7.4 V

·       Operating Current:≈20 mA @ 6 V

·       Operating Temp.:-10°C to 40°C

·       Storage Temp.:-10°C to 45°C

·       Operating Humidity:10%–90% RH (non-condensing)

·       Storage Humidity:20%–65% RH (non-condensing)

Included:

·       1 x SKYRC GD401A Gyro

·       1 x Instructions
