SkyRC B6neo+ 240W 1-6 Cell LiPo Battery Charger - Crimson Sky

Introducing the B6neo+ Smart Charger from SkyRC, a compact and powerful solution designed to revolutionize your RC charging experience. This innovative charger packs astonishing power into a sleek, credit card-sized design, delivering up to 240W when connected to DC and an impressive 126W via PD 3.1 input. Say goodbye to long wait times and hello to rapid charging that keeps you running longer. With its state-of-the-art features, the B6neo+ ensures you have the power you need, when you need it. Available in four eye-catching colors, you can choose one that reflects your style.

The B6neo+ is not just about speed; it also champions sustainability with its PD Reverse Discharging capability. This groundbreaking feature allows you to discharge up to 100W while charging your devices like smartphones and laptops directly from the stored power in your RC battery. With a focus on energy efficiency, the B6neo+ minimizes waste and supports a greener future. Whether you’re at the track or on the go, you’ll have access to reliable power whenever you need it.

Equipped with smart fan control and a vibrant ColorX interface, the B6neo+ makes charging a hassle-free experience. The intuitive controls and multi-language support ensure that users of all backgrounds can operate it with ease. Safety is paramount, and with built-in protections against over-voltage, short circuits, and overheating, you can trust that your batteries are in good hands. Elevate your RC game with the B6neo+—where innovation meets style and performance.

Features

• High power output of up to 240W for DC input and 126W via PD 3.1 input
• PD Reverse Discharging capability allows discharging up to 100W
• Compact design that is credit card-sized, lightweight, and portable
• Available in four eye-catching colors (Crimson Sky, Mysterious Black, Sakura Blossom, and Sunlit Sky)
• Smart fan control operates quietly at a maximum of 48 dB
• Intuitive ColorX interface with vibrant colors and easy navigation
• Multi-language support available in English, Spanish, Dutch, French, Russian, Chinese, and Japanese
• Compatible with multiple battery types including LiPo, LiHV, LiFe, LiIon, NiMH, NiCd, and Pb
• Enhanced safety features including short-circuit, over-temperature, capacity, time-out, cut-off, and over-voltage protections
• Battery checker functionality displays overall and individual cell voltage for monitoring

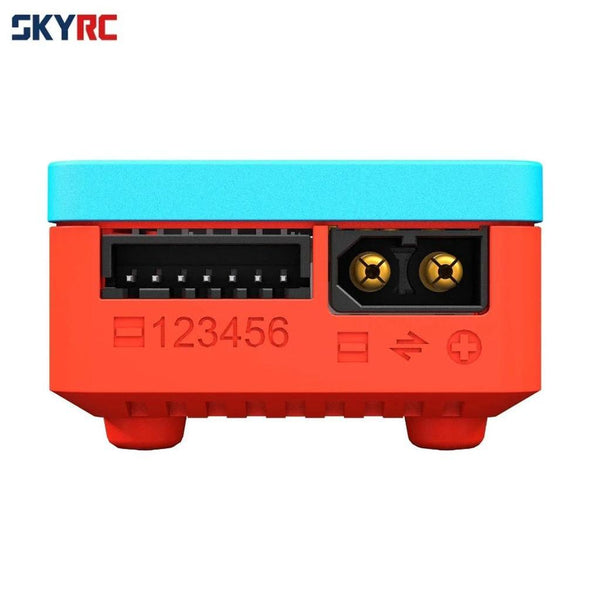

• XT60 output for ease of use with most batteries
• Both XT60 and USB Type-C inputs for power
• Firmware upgradeable through the Charger Master app and USB Type-C connection

Specifications

Brand / Model

• Brand: SkyRC
• Item Name: B6neo+ Smart Charger

Display

• Type: TN
• Size: 1.77 inch
• Active Area: 28.03 × 35.04 mm
• Resolution: 128 × 160 pixels
• Colors: 262K

Power

• DC Input Voltage: 5–30V
• PD 3.0/3.1 Input: 5–28V
• Charger Power: DC: 240W | PD: Max. 126W
• Discharge Power: Max. 16W (6S @ 4.2V/cell)

Battery Compatibility

• LiPo / LiFe / LiIon / LiHV: 1–6 cells
• NiMH / NiCd: 2–15 cells
• Pb (Lead Acid): 3S / 6S / 12S

Charge & Discharge

• Charge Current: 0.3–10A (all chemistries)
• Discharge Current: Li-based: Max. 0.6A
• Balance Current: Li-based: Max. 600mA

Operation Modes

• LiPo / LiFe / LiIon / LiHV: Balance Charge, Charge, Discharge, Reverse Charge, Storage
• NiMH / NiCd: Charge, Re-peak, Reverse Charge
• Pb (Lead Acid): Normal, AGM Charge, Cold Charge, Reverse Charge

Size & Weight

• Shell Material: PC-ABS V0
• Dimensions: 70 × 50 × 31 mm
• Weight: 82 g

Includes

• SkyRC B6neo+ 240W 6 Cell (6S) LiPo DC Battery Charger – Mysterious Black or With Power Supply (choose option)
• User Manual
