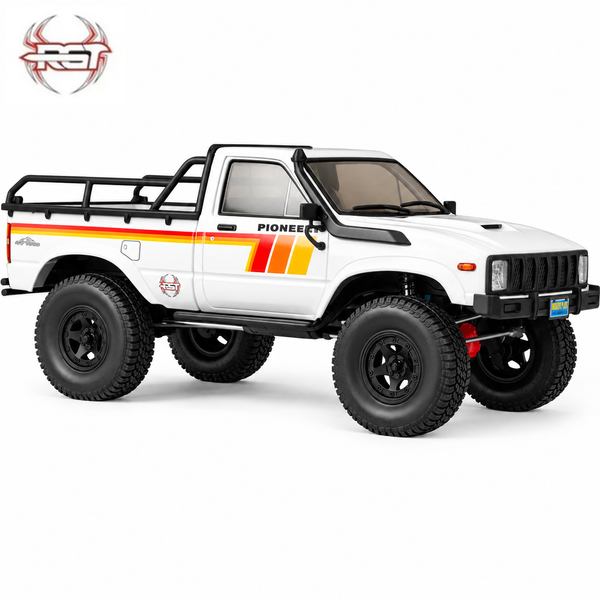

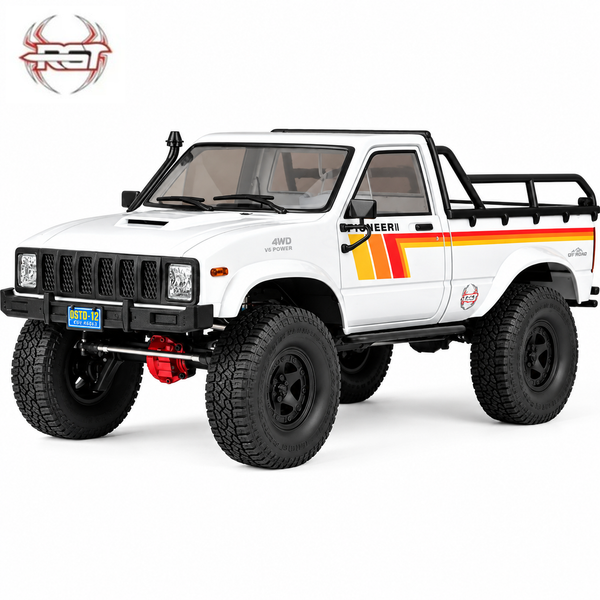

RGT EX86110 V2 For PIONEER Ⅱ 1/10 2.4G 4WD RC Car Rock Crawler Off-Road Climbing Pickup Truck Two Speed LCG Portal Axle Reverse Drive Hobbywing ESC LED Light Oil Shocks Vehicles

In 2026, RGT is set to launch the fully upgraded for Pioneer V2 — a 1/10 scale high-performance crawler that combines the rugged pickup-truck styling with professional off-road traversing capabilities.

Boasting a low-center-of-gravity layout, front and rear portal axle design, 2-speed transmission, reverse drive system and on-axle servo setup, the for Pioneer V2 delivers dependable mechanical performance and exceptional crawling prowess.

While inheriting the classic DNA of RGT crawlers, the Pioneer V2 receives comprehensive upgrades in materials, gear machining precision, mechanical transmission and overall visual quanlity. Compared with the original Pioneer, the EX86110V2 achieves a full-scale evolution.

Electronics

The Pioneer Rock Crawler comes in RTR (Ready-to-Run) configuration and is equipped with a complete electronics package designed for crawler use.

• 20T RC550 high-torque motor
• Hobbywing WP-1060 waterproof ESC, specially designed for crawler/climbing vehicles
• ESC supports 2S–3S lithium batteries
• 15KG all-metal gear waterproof steering servo
• Waterproof 9g metal gear servo
• 6-channel 2.4GHz transmitter, specially designed for crawlers
• Expandable integrated lighting control box designed specifically for the vehicle

Specifications

·       Brand: RGT

·       Item No.: EX86110 V2

·       Scale: 1/10

·       Colour: White

Power System

·       ESC: Hobbywing WP-1060 60A crawler-specific brushed ESC

·       Motor: 8020-RC550 20T brushed motor

·       Steering Servo: 15kg all-metal gear waterproof digital servo

·       Function Servo: 9g metal gear servo

·       Function Servo Voltage: 4.8–7.4V

Transmitter

·       Frequency: 2.4GHz

·       Channels: 6CH

·       Remote Distance: ≥150m

·       Transmitter Battery: 4 × 1.5V AA batteries (not included)

Battery

·       Battery: Not included

·       Recommended Battery: 2S–3S LiPo battery

Vehicle Specifications

·       Material: PA + Metal + Electronic Parts

·       Weight: 2.72kg (without battery)

·       Approach Angle: 58°

·       Departure Angle: 42°

·       Ramp Angle: 24°

·       Gear Ratio: 58:1 (Low) / 28:1 (High)

·       Body Shell: Soft PC, 1.2mm

Dimensions

·       Vehicle Size: 525 × 225 × 230mm

·       Wheelbase: 314mm

·       Ground Clearance: 65mm (chassis) / 45mm (axle)

·       Wheel Size: 110 × 36mm (Diameter × Width)

·       Box Size: 565 × 270 × 265mm

Package Includes

·       1 × RGT EX86110 V2 1/10 RC Crawler

·       1 × 2.4GHz 6-Channel Remote Controller

·       1 × User Manual

·       Battery & Charger: Not included

·       Recommended Battery: 2S–3S LiPo battery

·       Transmitter Batteries: 4 × AA batteries required, not included
