HakRC F4 OSD 2-6S Flight Controller with 5V 10V BEC Output Built-in Current Sensor LED Light
Hobby Square Singapore
Regular price $49.00

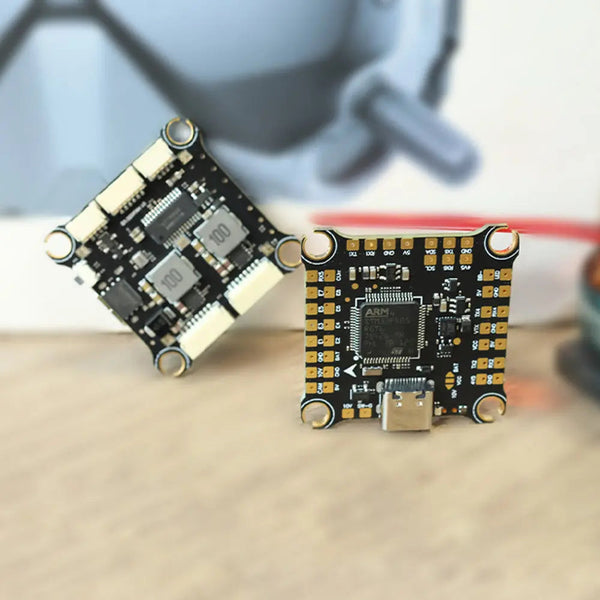

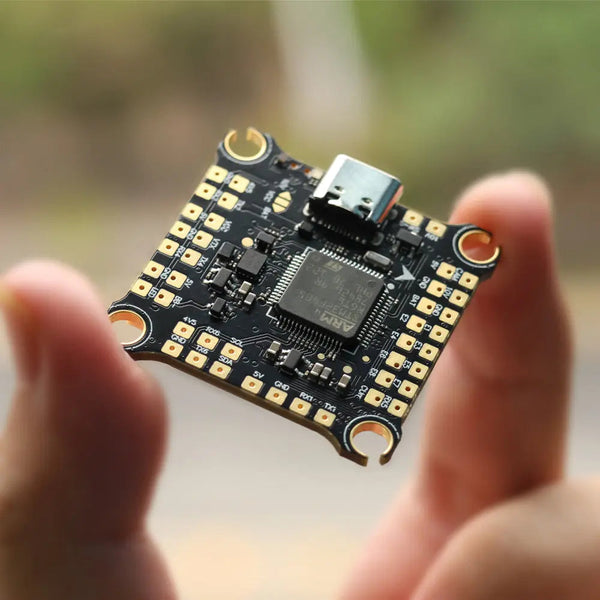

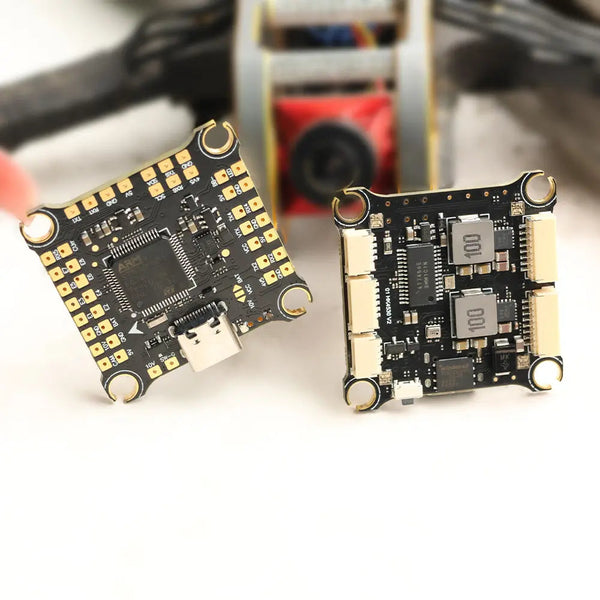

The HAKRC F4530V2 Flight Controller is a top-tier solution designed for FPV racing enthusiasts and drone hobbyists seeking exceptional performance and reliability. This flight controller boasts advanced processing capabilities, making it compatible with leading firmware like Betaflight and INAV, allowing for extensive customization and optimization of your flight settings.
Engineered with high-quality components, the F4530V2 features an efficient layout that minimizes wiring clutter, ensuring a clean installation in your drone build. Its robust design supports high-frequency sampling, delivering rapid response times for precise manoeuvrability, essential for competitive racing and aerial acrobatics. The controller also incorporates built-in telemetry and advanced failsafe mechanisms, providing added safety and reliability during your flights.
Whether you’re chasing podium finishes or simply enjoying your time in the air, the HAKRC F4530V2 Flight Controller is your go-to choice for a high-performance flying experience.
Features
· The PCB adopts high-end 6-layer 1oZ thickened copper sheet and adopts high-end resin plug hole PCB production process, with strong anti-interference ability
· Adopting industrial grade LDO, resistant to high temperature
· Use inline connectors for easy installation and soldering free
· The board comes with 4 programmable illusion LED lights, which can freely switch LED lighting effects
· Reserve an external LED light strip with a 10V power supply, and customize the remote control channel for light strip switch control
· The image transmission power supply can be freely turned on or off by setting a switch channel at the ground station, facilitating ground reference adjustment
· Adopting high-quality Murata capacitors from Japan, with strong filtering performance
· Eight motor control signal outputs
· Equipped with 6P sky terminal seat
· RX2 to SBUS
Specifications
· Brand: HAKRC
· Item Name: 30.5x30.5mm F4 Flight Controller
· CPU: STM32F405RET6
· IMU: ICM42688
· OSD: AT7456E
· Barometer: Integrated
· Black Box: 16M
· BEC: 5V/3A, 10V/2.5A
· LED: Adjustable LED light
· Sensor: Built-in current sensor
· Firmware Version: HAKRCF405V2 4.4
· Input Voltage: 2-6S
· UART: 6
· Size: 36X36mm (30.5mm-30.5mm mounting holes)
· Product Weight: 8.5g

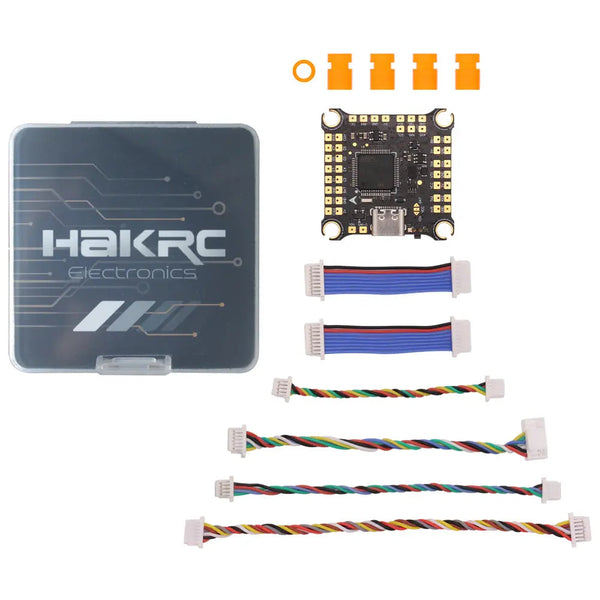

Packing list:
· 1x F4530V2 Flight controler
· 4x M3Shock absorber
· 1x 8Pcabled
· 1x DJI FPV cabled
· 1x LED4Pcabled
· 1x receiver 4Pcabled
· 1x DJI O3 Air Unit 3-in-1 Cable
· 1x Instructions
