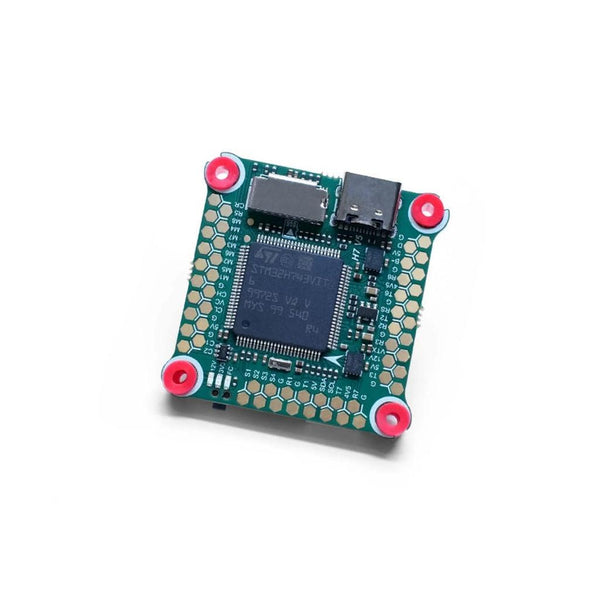

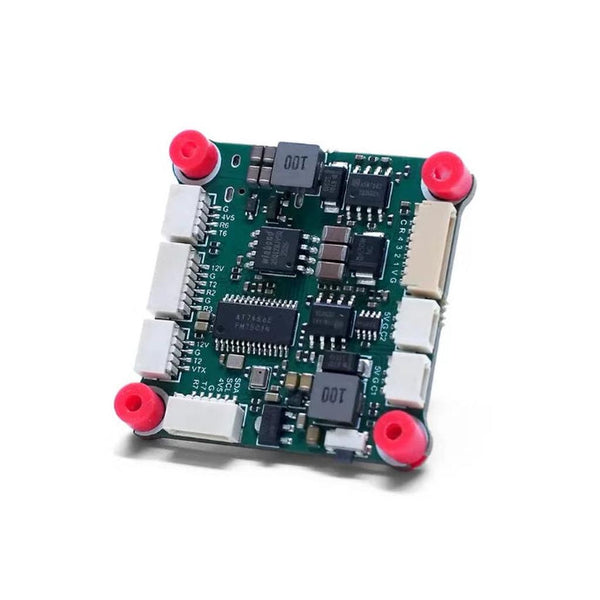

H743 V5 Flight Controller Single Gyro Dual BEC – ArduPilot PX4 INAV Betaflight

Product Specifications

·       Operating Voltage: DC 7–65V (2–12S)

·       BEC 1: 5V / 2.5A

·       BEC 2: 12V / 2.5A

·       UART Ports: 7

·       CAN Port: 1

·       Motor Output Channels: 8

·       Servo Output Channels: 4

·       Main Processor (MCU): STM32H743

·       Maximum MCU Frequency: 480MHz

·       Black box Storage: 16MB on-board flash / SD Card

·       IMU (Gyroscope & Accelerometer): Single ICM42688P

·       OSD Chip: AT7456E

·       Supported Receiver Protocols: CRSF / SBUS / IBUS / DSM

·       Buzzer Pad: Supported

·       Current Sensor Feedback Interface: Supported

·       DJI O3/O4 Air Unit Port: Supported

·       Reverse Polarity Protection: Supported

·       Supported Flight Firmware: Betaflight / ArduPilot / INAV / PX4

·       Mounting Hole Pattern: 30.5 × 30.5mm / M4
