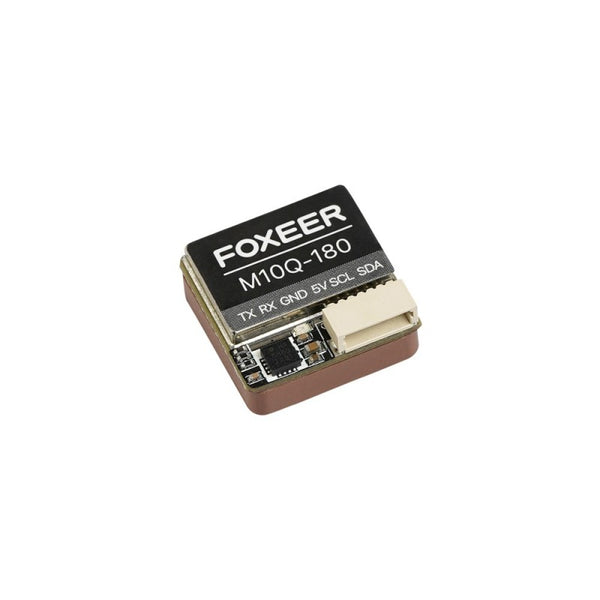

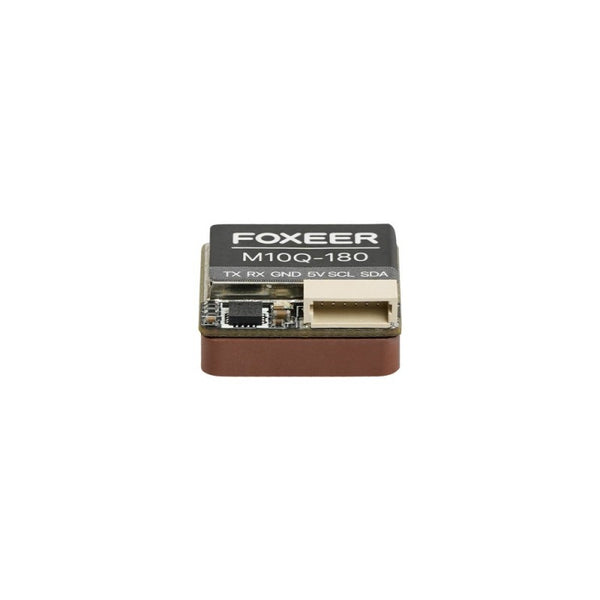

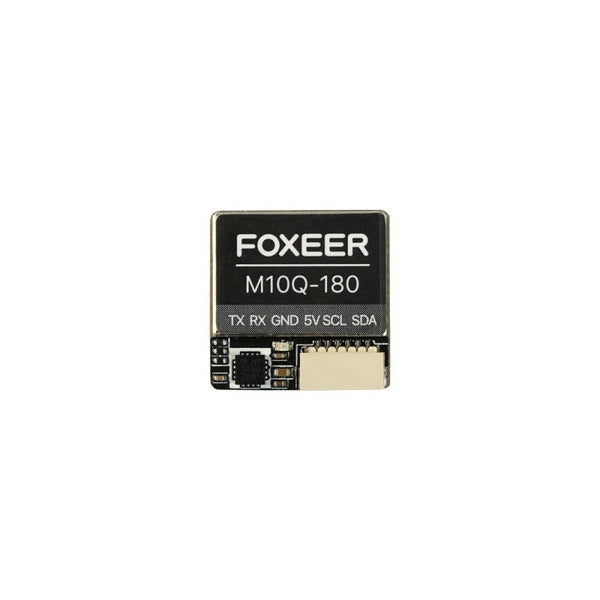

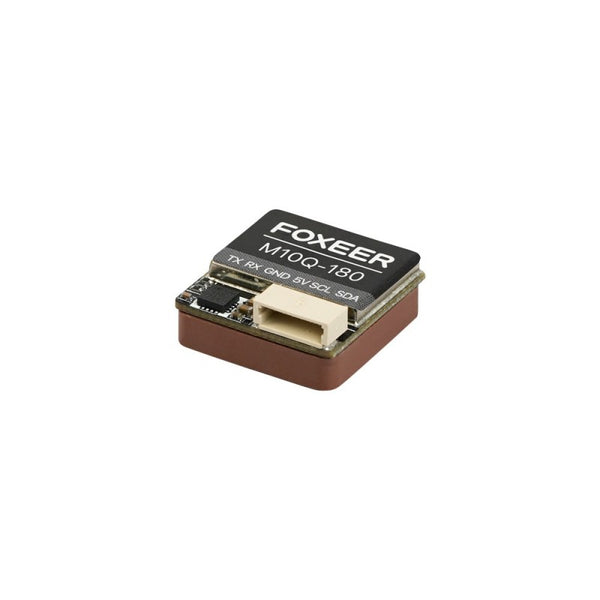

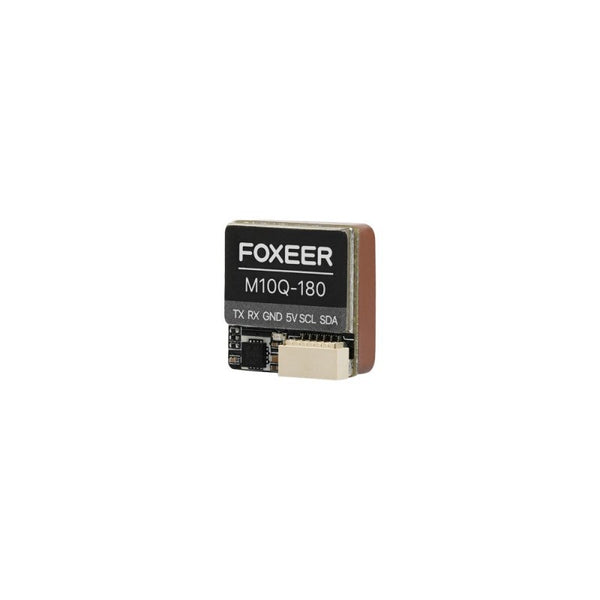

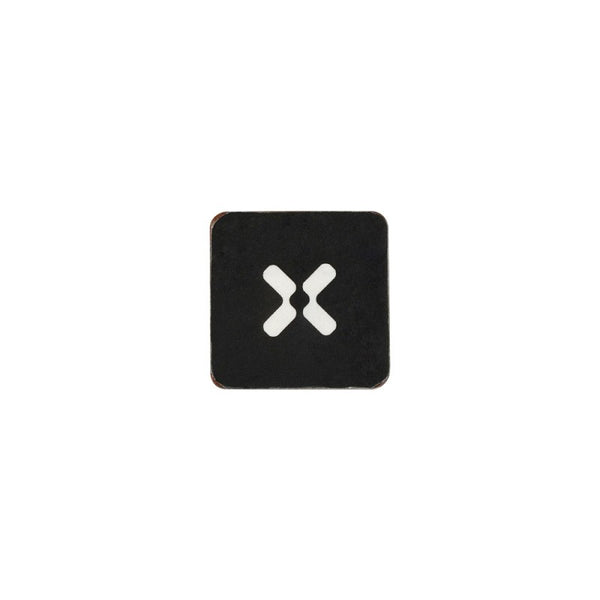

Foxeer M10Q 180 GPS 5883 Compass

Foxeer

Regular price $30.00

Chip	M10(10th Generation Chip)
Frequency	GPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1
Input Voltage	5V
Antenna	Ceramic Antenna
Channel	72
Battery	Bilid-in
Compass	QMC5883
Compass Orientation	Plug facing direction of flight and obviously antenna up, BF: CW 180° Flip
Baud Rate	115200bps
Protocol	Dual NMEA/UBLOX
Output Frequency	1Hz-10Hz,10Hz default
Speed Accuracy	0.05m/s
Horizontal Positioning Accuracy	2D ACC1.5m(outdoor)
Receiver Sensitivity	Trace -166dBm; Capture -160dBm
Dynamic Characteristics	Height 50000m; Speed 500m/s; Acceleration 4G
Operating Temperature	-40C-+85C
Storage temperature	-40C-+105C
Weight	7.5g
Size	18188mm
