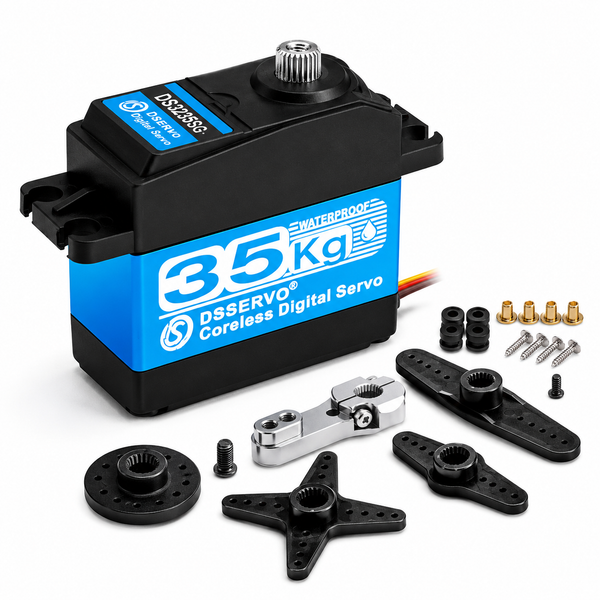

DSServo 35KG High Torque Waterproof Coreless Digital Servo – RC Car, Boat & Robotics

Features

·         35KG High Torque performance

·         Coreless Digital Servo for fast and precise response

·         High-precision stainless steel gears

·         Waterproof design with protective gaskets

·         CNC aluminium middle housing for strength and heat dissipation

·         Dual bearing design for smooth operation

·         25T metal output spline

·         Suitable for RC cars, boats, robotics, Arduino & DIY projects

·         Compact size: approx. 40 × 20 × 42.5 mm

Specifications

·         Brand: DSServo

·         Model: DS3235

·         Servo Type: 35KG High Torque Coreless Digital Servo

·         Operating Voltage: 5.0–7.4V DC

·         Motor Type: Coreless Motor

·         Gear Type: Stainless Steel & Aluminium

·         Rotation Angle: 180 Degrees

·         Operating Speed:

o    0.13 sec/60° @ 5V

o    0.12 sec/60° @ 6V

o    0.11 sec/60° @ 7.4V

·         Stall Torque:

o    29 kg·cm @ 5V

o    32 kg·cm @ 6V

o    35 kg·cm @ 7.4V

·         Stall Current:

o    1.9A @ 5V

o    2.1A @ 6V

o    2.3A @ 7.4V

·         Idle Current: 5mA

·         Working Frequency: 50–333Hz

·         Waterproof: Yes

·         Output Spline: 25T

·         Weight: Approx. 60g

·         Dimensions: Approx. 40 × 20 × 38.5mm

·         Suitable For: RC Cars, RC Boats, Robotics, Arduino & DIY Projects

Including

·         1 X DSServo 35KG High Torque Servo
