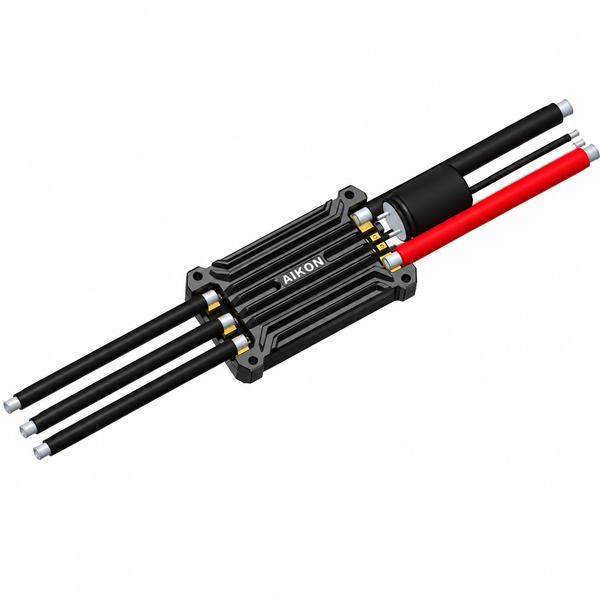

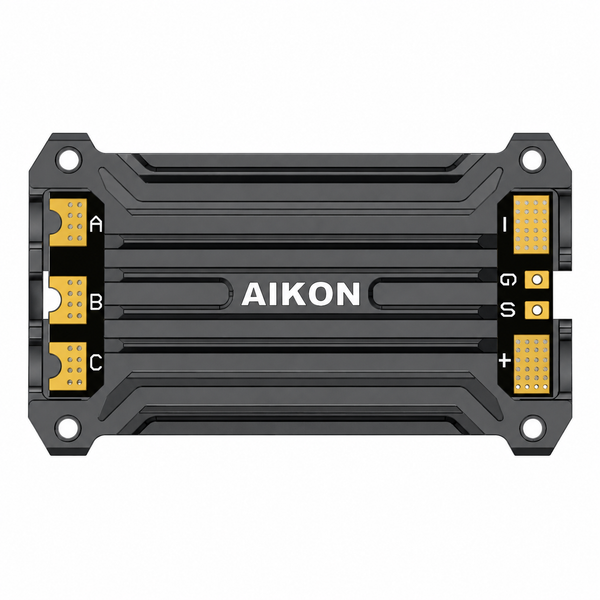

AIKON AK8 80A 2-8S BLheli_S ESC

The AIKON AK8 80A 2-8S BLHeli_S ESC is a high-performance speed controller built for demanding FPV drone setups. Designed with high-grade MOSFETs for efficient current delivery, it supports DShot, Multishot, and One-shot protocols for smooth throttle response and reliable performance. Powered by BLHeli_S firmware, it ensures low latency, stable flight, and precise motor control—perfect for freestyle and racing drones.

Features

·       Improved heat dissipation for higher efficiency and cooler operation

·       40V low-resistance MOSFETs for efficient power delivery

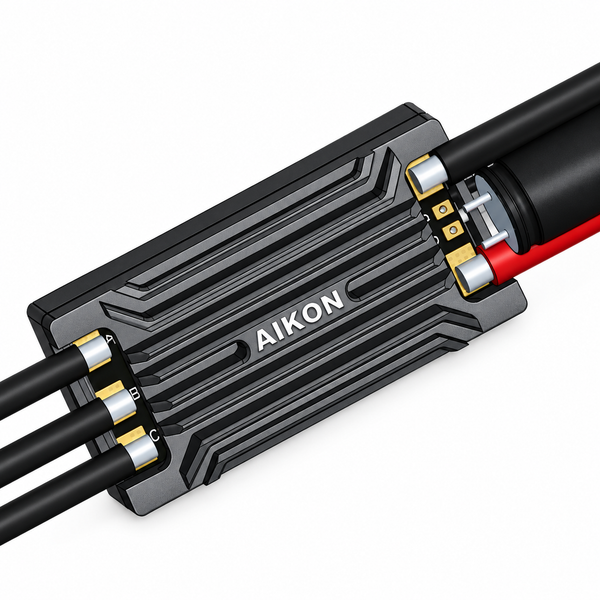

·       Integrated CNC-machined top and bottom heat sinks

·       Designed for demanding FPV drone applications

·       High power output in a compact form factor

·       Durable and cost-effective design

·       Supports 3–8S LiPo input

Specifications

·       ESC Protocols: DSHOT300 / DSHOT600

·       MOSFET: High-performance MOSFET

·       Burst Current: 100A (10 seconds)

·       Dimensions: 26mm x 42mm

·       Current Sensor Scale: 200

·       Continuous Current: 80A

·       MCU: EFM8BB21F16G

·       Power Input: 3–8S LiPo

·       Firmware: C_H_40 24k

·       ESC Telemetry: No

·       Mounting: N/A

·       Weight: 32g

Includes

·       1x AIKON AK8 80A 2-8S BLheli_S ESC

·       1x 50V 1000UF Capacitor

·       2x Power Cable - 200mm

·       1x Signal Wire - 200mm
