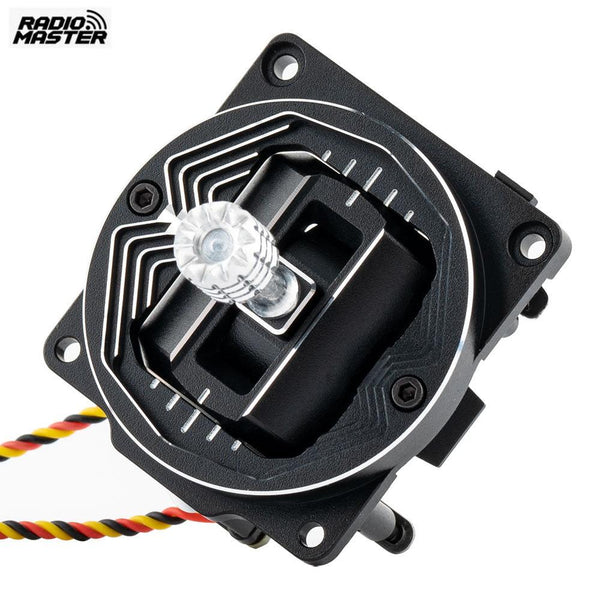

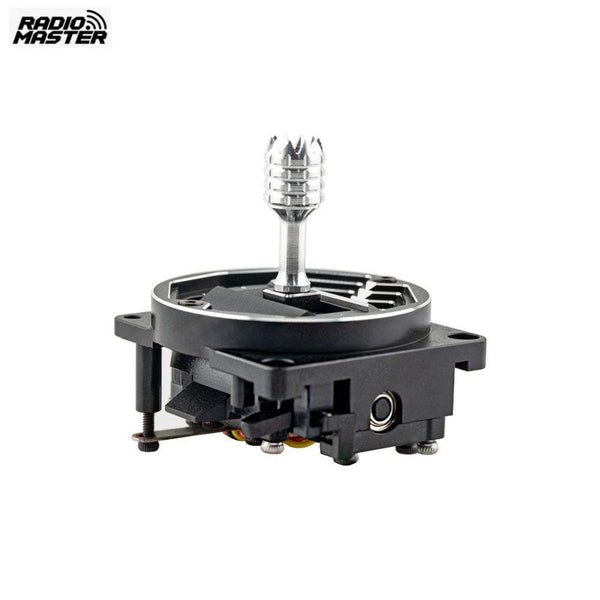

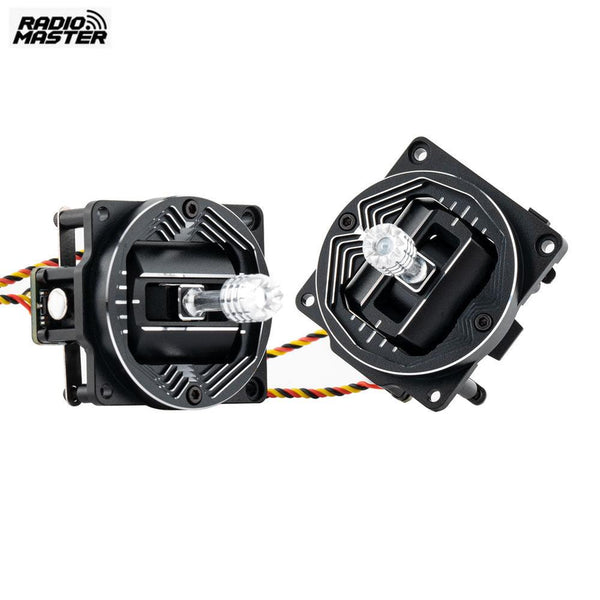

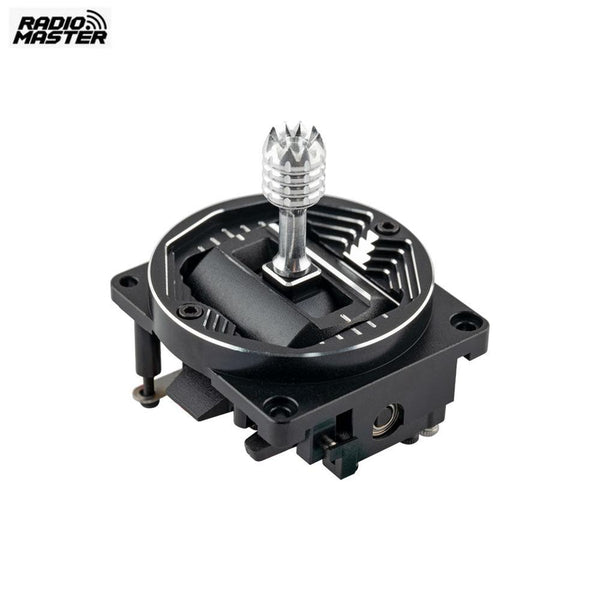

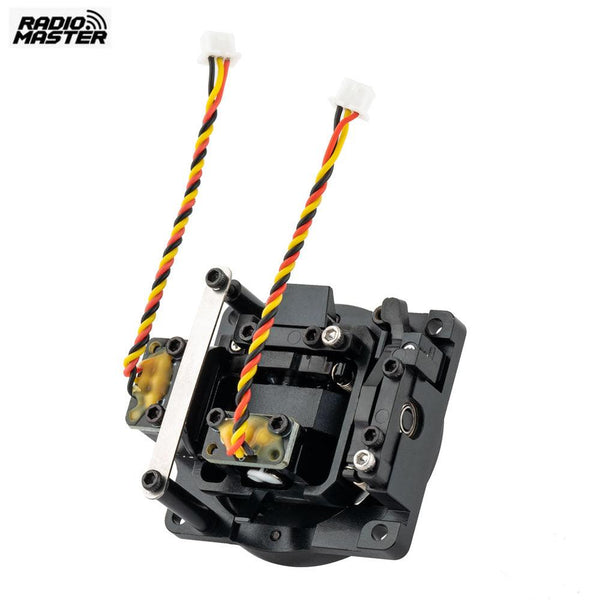

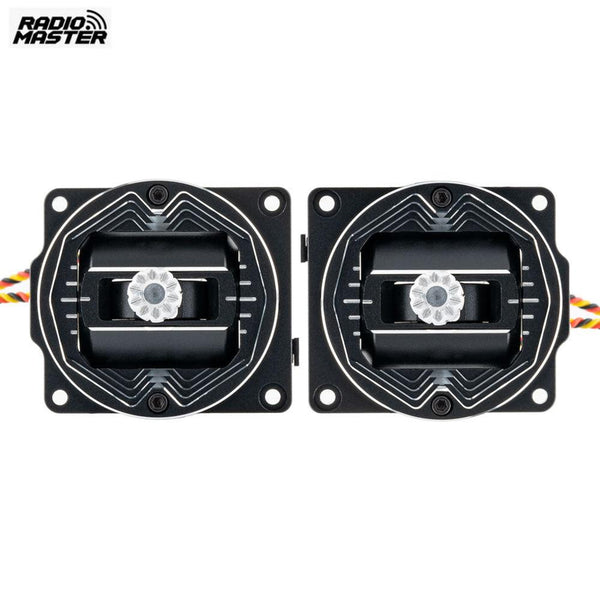

Radiomaster AG01 NANO CNC Hall Gimbals for Pocket Radio

Unleash Unrivalled Precision and Control: Introducing the AG01-Nano Hall Effect Gimbals! Your RadioMaster Pocket just got a game-changing upgrade option! RadioMaster, renowned for elevating your RC experience, has shattered expectations once again. By popular demand, the AG01 series of gimbals now has a Nano Option for the popular Pocket controller.

Features

·       Made with billet CNC aviation grade aluminum for superior durability and outstanding looks

·       Non-contact hall sensors with precise centering for accurate control

·       Quad precision bearings for unparalleled feel

·       Adjustable vertical travel angle (Min. 38°, Max. 54°)

·       AG01 NANO Gimbal is specifically designed for the smaller POCKET radio

Specifications

·       Item: AG01 NANO CNC Hall Effect Gimbal

·       Sensor type: Non-contact hall effect

·       Working voltage: DC 3.3V

·       Linearity: Real-time (No latency)

·       Adjustable vertical travel range: 38°- 54°

·       Self-centering adjustment: Yes

·       Mode adjustment: Yes

·       Adjustable tension: Yes

·       Bearing: Quad precision bearings

·       Temperature range: -20°C-85°C

·       Size: 42*37*43mm

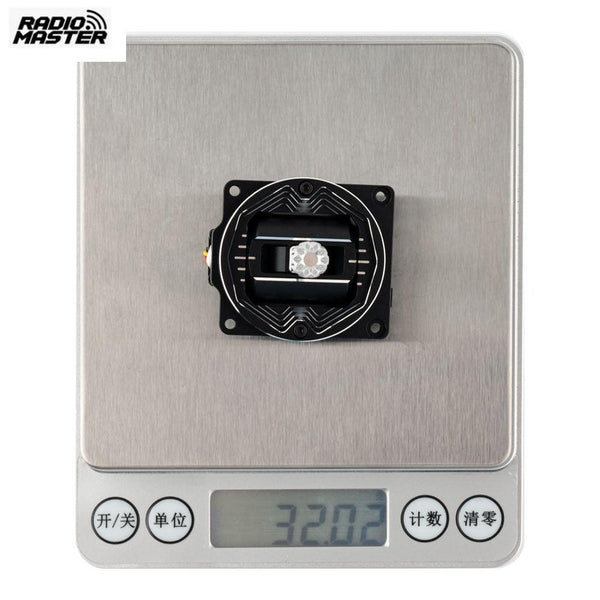

·       Weight: 32g(±0.3g)

Precision Engineering Meets Unparalleled Control!

Crafted from billet CNC aviation-grade aluminum and equipped with quad precision ball bearings, the AG01 Nano gimbals deliver unparalleled performance and customization. Experience effortless manoeuvrability with customizable movement angles ranging from 38° to 54°. Sense the Pinpoint Accuracy with High-speed, high-precision, no-contact Hall effect sensors ensures razor-sharp accuracy and effortless centering. Feel the butter-smooth action from the quad precision ball bearings delivering silky-smooth operation for a truly intuitive flying experience.

EXTERIOR ADJUSTABLE

Size

How to install AG01 Nano Gimbals

Package Includes

·       2 * AG01 NANO CNC Hall CNC Gimbal

·       2 * L-shaped Hexagon Socket Screwdriver

·       4 * Hard Tension Spring

·       8 * PB2*6 Screw

·       2 * CM1.6*3 screw

·       2 * Manual
