PandaRC R1 5.8GHz VTX Uninterrupted Performance FPV Transmitter OSD+Power Detection 6-36V MMCX for 25-200mW FPV Racing Drones - Black

Features

·       Adjustable Transmission Power: Supports output power settings from 25mW to 200mW and allows complete power shutdown for customization and energy efficiency.

·       Multi-Channel Support: 8 frequency channels ensure smooth FPV operations for both casual and competitive drone activities.

·       Compact Design: Ultra-lightweight construction at ≤5.5g and 21304.5mm dimensions for convenient integration.

·       Dynamic Built-in Power Detection: Power stability ensuring optimized and consistent performance during use.

·       User-Friendly Controls: Button and OSD interface to efficiently manage channels and power settings with ease.

Specifications

·         Brand: PandaRC

·         Model: R1 Racing VTX

·         Transmission Power: Adjustable from 25 mW to 200 mW (transmission can be turned off)

·         Input Voltage: 6–36 V

·         Parameter Adjustment: Key / OSD

·         Working Current:

·         ≤12 V / 60 mA @ No RF

·         ≤12 V / 185 mA @ 25 mW

·         ≤12 V / 280 mA @ 200 mW

·         Output Frequency: 8CH

·         Antenna Interface: MMCX

·         Dimensions: 21 × 30 × 4.5 mm

·         Weight: ≤5.5 g

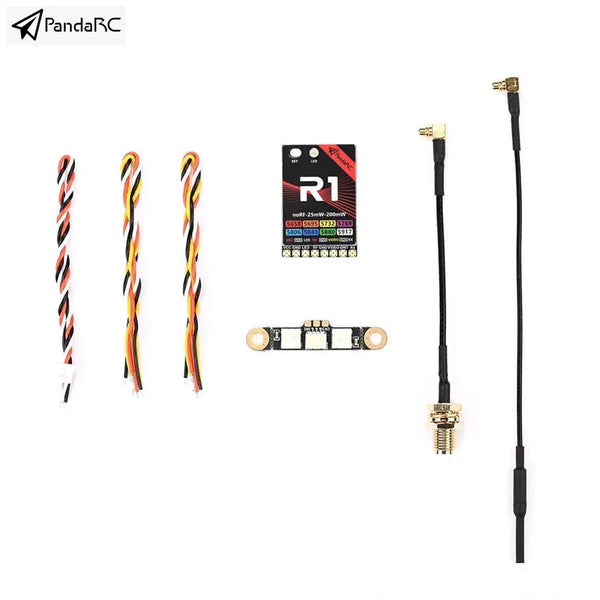

Including

·         1 x R1 VTX

·         1 x LED Light Strip

·         1 x MMCX to SMA Cable

·         2 x VTX Connection Cable

·         1 x LED Connection Cable
