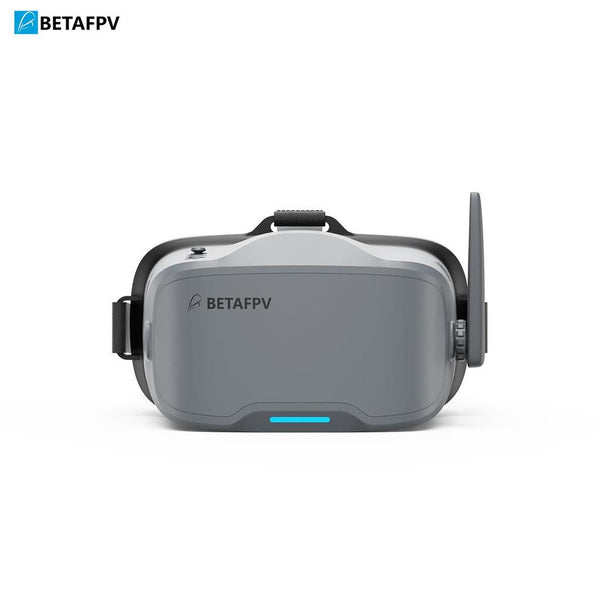

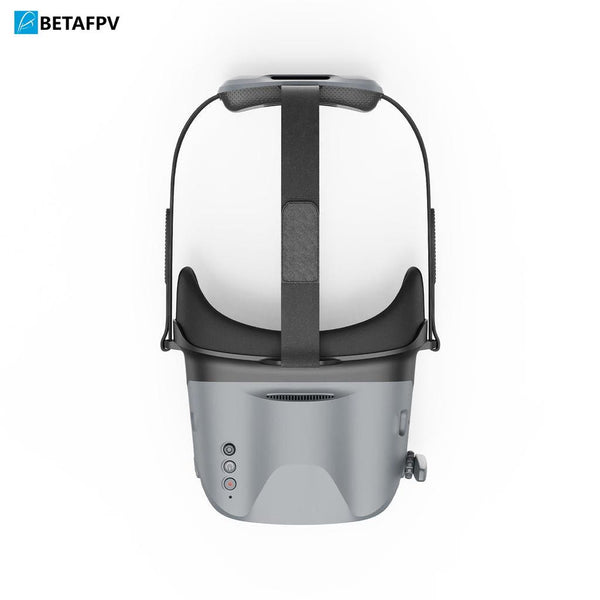

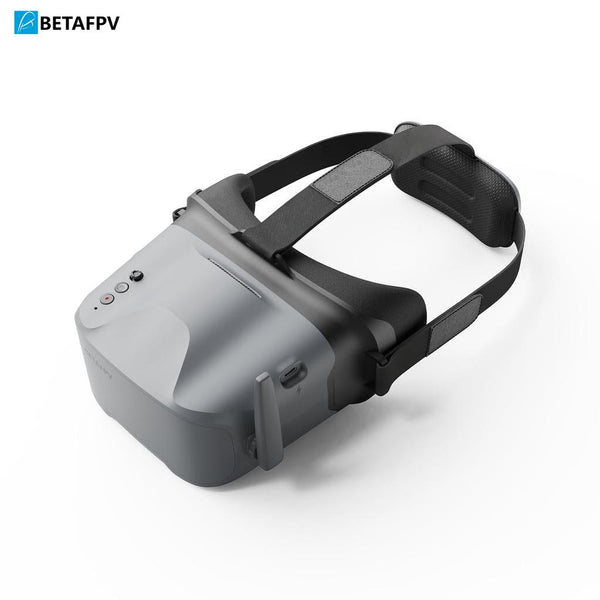

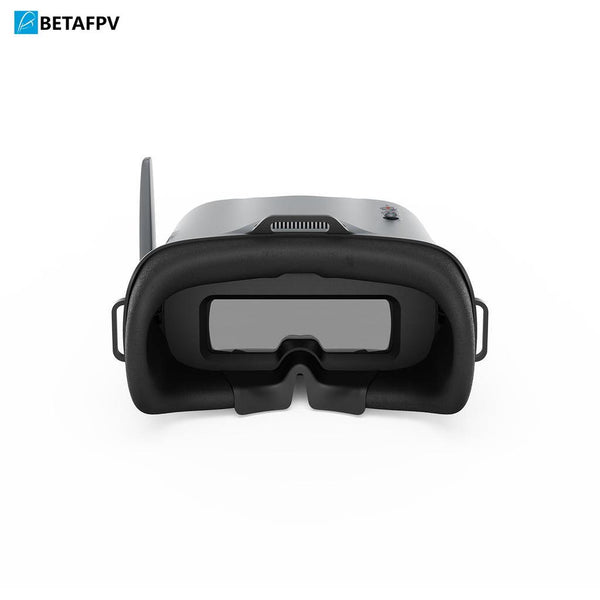

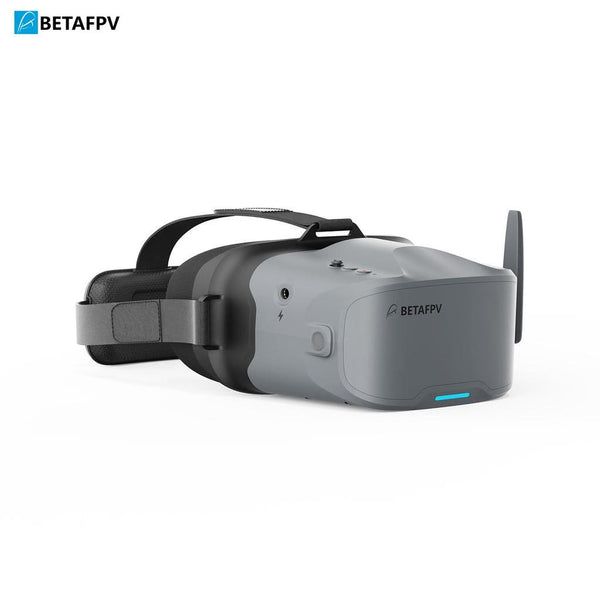

BetaFPV VR04 Analog FPV Goggles

Designed for total immersion and comfort, the VR04 FPV Goggles feature a glasses-friendly design with ample space, so you never have to remove your eyewear. Enhanced with contoured face padding and a soft rubber nose bridge, they block outside light effectively while fitting securely for longer, more focused sessions. The 2000mAh built-in battery provides up to 2 hours of standby time, while one-button recording lets you effortlessly capture footage directly to a microSD card and relive your flights anytime.

Features

·       Typical Capacity : 4200mAh

·       Typical Voltage: 22.2V

·       Glasses-Friendly Fit: Spacious interior lets you wear your glasses comfortably while flying.

·       Full Light-Blocking Design: Contoured face padding and a soft nose bridge seal out glare for total immersion.

·       2000mAh Built-in Battery: Supports up to 2 hours of continuous use and can be conveniently powered by any 2–6S whoop batteries.

·       One-Button Recording: Instantly capture smooth footage directly to the goggles with a single press.

Specifications

·       Size: 168.8x182.1x98.5mm

·       Weight: 425g±10g

·       Video Format: NTSC/PAL

·       Supported Channel: 48CH

·       Screen Size: 4.3 inch

·       Screen Resolution: 800*480

·       Battery: 3.7V, 2000mAh

·       Runtime: About 2 hours in normal mode, about 1 hours in recording mode

·       Antenna Port: RP-SMA

·       Charging Port: Type-C

·       Card Slot: MicroSD card (Not included), Supports FAT32 system, maximum 64GB storage

·       Recording Resolution: 480P@30fps

·       Video Format: AVI

Diagram

Total Immersion & Comfort

The VR04 FPV Goggles are designed for extended-wear comfort, featuring a glasses-friendly interior that accommodates most eyewear. Premium PU face padding ensures a secure, comfortable fit, while a soft silicone nose bridge seals out external light to deliver a fully immersive flight experience.

Power Flexibility

Equipped with a built-in 2000mAh battery, the VR04 supports up to 2 hours of use on a single charge. For added flexibility, it can also be powered directly by any 2‑6S whoop battery—ideal for extended sessions or quick-swap setups.

Record & Replay

Capture each flight effortlessly with one-button recording directly to a microSD card (supports up to 64GB of storage). Relive your most thrilling moments anytime, with no extra gear required.

How to Record A Video?

·       Insert a microSD card into the card slot, FAT32 format only and maximum 64G;

·       Short press the record button once, a red dot will appear in the upper left corner. Then there will be a "beep-beep" sound from FPV goggles;

·       Wait for 8 seconds, the red dot and the recording LED indicator will start flashing. At the same time, a timer appears on the screen, indicating the start of recording;

·       To stop the recording, short press the record button once again. After 2-3 seconds, the red dot on the upper left corner stop flashing, the timer disappears, and the red record LED indicator turns off.

Notes:
1. After pressing the record button, the DVR recording function will take about 8-10 seconds to be activated, please wait in patience.
2. The maximum length of each recording is 10 minutes. When a recording exceeds 10 minutes, a new recording file will be created automatically.

The VR04 FPV Goggles support 5.8G and 48 channels. Press and hold the 5D button for 2-3 seconds to activate frequency search. There will be a beep after 3 seconds, and the best available frequency will be selected automatically. Signal quality of each frequency is indicated by red, yellow and green.

·       Green (0<RSSI<20): Frequency is available.

·       Yellow (20<RSSI<70): Frequency has moderate interference from another transmitter.

·       Red (70<RSSI): Frequency is completely in use by a transmitter.

·       White: The strongest signal which the goggles received in this scan.

Package

·       1 * VR04 FPV Goggles

·       1 * Adjustable Headband

·       1 * User Manual
