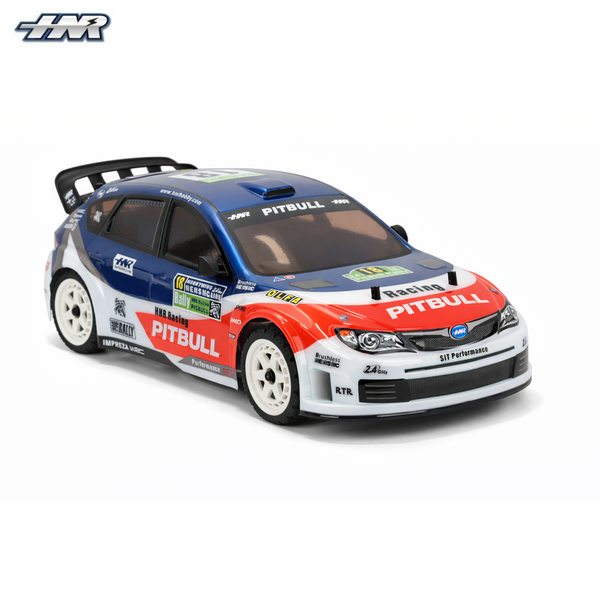

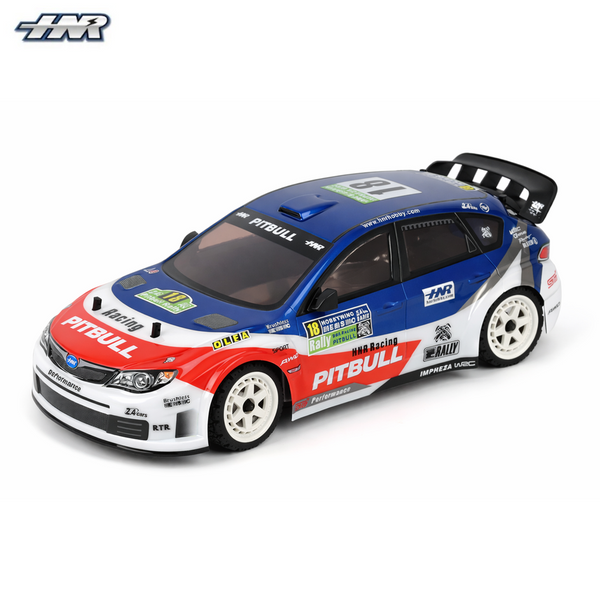

HNR H9804 Pitbull Subaru Impreza 1/10 2.4G 4WD Brushless RC RALLY Car On-Road Flat Running Electric Remote Control Racing Vehicles (Red/White) RTR (Up to 90km/h)

In 2024, HNR launched its new 1/10 scale brushless power rally car, "Foxhound". With its outstanding performance, the model won wide acclaim in the RC market. To meet the demand of rally car enthusiasts for hatchback models, HNR leveraged the successful experience of the "Foxhound" and rolled out a new 1/10 standard simulated rally car – the "Pitbull" (Item No: H9804SR). This is a simulated hatchback model with broad market appeal.

Based on the original H9804 platform, "Pitbull" undergoes targeted component optimizations while maintaining the same dimensional specifications, achieving both aesthetic appeal and high performance. The "Pitbull" is equipped with a 2.5MM high-strength aluminum alloy chassis, a carbon fiber shock tower, and high-precision bearings. Its transmission system adopts a front-center-rear threee-differential design, paired with high-precision powdered alloy gears. The car features a variety of professional parameter settings, delivering exceptional handling.

A slider-type CNC aluminum alloy motor mount is fitted with a 3652 motor and a Hobbywing 60A ESC brushless power system, it supports output from a 3S high-rate lithium battery, enabling a top speed of up to 90 km/h. "Pitbull" uses 1.2MM thick PC body, with eco-friendly spray paint and transparent windows.

Specifications

·       Scale: 1/10 Rally Car

·       Drive Type: 4WD

·       RTR Status: RTR (Ready to Run – Battery & Charger Included)

·       Length: 432 mm

·       Width: 190 mm

·       Height: 140 mm

·       Wheelbase: 260 mm

·       Ground Clearance: 12–20 mm

·       Weight: 1.6 kg (without battery)

·       Gear Ratio: 6.5 : 1

·       Wheel Size: 68 × 27 mm

·       Hex Size: 12 mm (steel)

Battery & Charging (Included)

·       Battery Included: 2S LiPo (RTR package)

·       Battery Tray: Supports 2S / 3S LiPo

·       Battery Connector: T-Dean (T-Plug)

·       Charger Included: Yes

Power System & Electronics

·       Motor: Brushless 3652 4000KV

·       ESC: Hobbywing WP-10BL60 RTR, 60A

·       Servo: HNR 9 kg metal-gear servo

·       Radio System:

·       Transmitter: DUMBO RC X5-150, 5CH, 2.4GHz

·       Receiver: DUMBO RC X5DA, 5CH, 2.4GHz

🚀 Performance

·       Top Speed:

·       ~41 MPH+ (2S LiPo)

·       ~56 MPH+ (3S LiPo – optional upgrade)

·       Motor Pinion: Aluminum 19T (32P)

Chassis & Drivetrain

·       Chassis: 2.5 mm CNC Aluminum 7075-T6

·       Center Differential: Steel internal gears

·       Differential Gears: Steel

·       Ring & Pinion Gears: Steel

·       Transmission: Full sealed waterproof bearings

·       Center Driveshafts: Steel dogbone

·       Front Driveshafts: Steel CVD

·       Rear Driveshafts: Steel dogbone

·       Wheel Axles / Threaded Parts: Steel

CNC & Carbon Components

·       Shock Towers: Carbon fiber (front & rear)

·       Shock Bodies: CNC aluminum, hard-anodized

·       Servo Mount: CNC aluminum 6061

·       Servo Mount Plate: Carbon fiber

·       Motor Mount: CNC aluminum 6061

·       Center Differential Mount: CNC aluminum 6061

·       Center Differential Protective Cover: Included

·       Suspension Arm Mounts:

·       CNC aluminum 6061

·       Adjustable inserts for fine tuning

Wheels & Body

·       Tires: 1/10 Rally Tires, 68 × 27 mm

·       Body Shell: Printed polycarbonate (PC)

·       Dust Cover: Polycarbonate anti-dust cover

·       Front Bumper: Foam bumper

Including

·       1X HNR H9804SR Pitbull Subaru Impreza 1/10 2.4G 4WD Brushless (Red/White Color）

·       1X Lipo Battery 5200mah 2S 80C and Lipo Charger

·       1X Remote Controller

·       1X Instruction Manual
