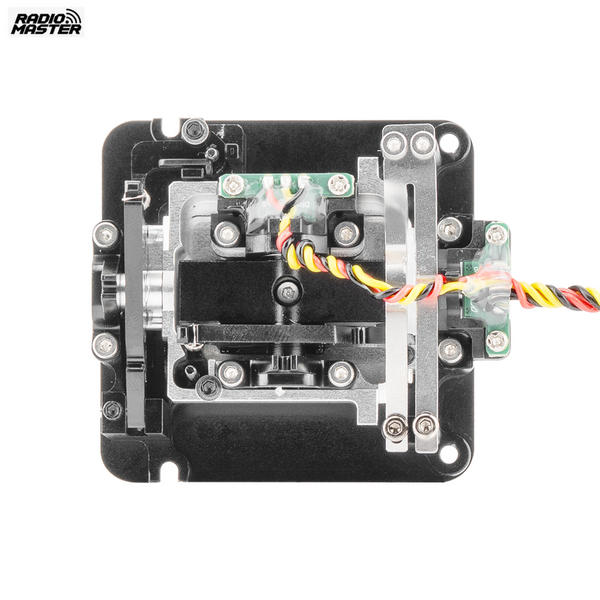

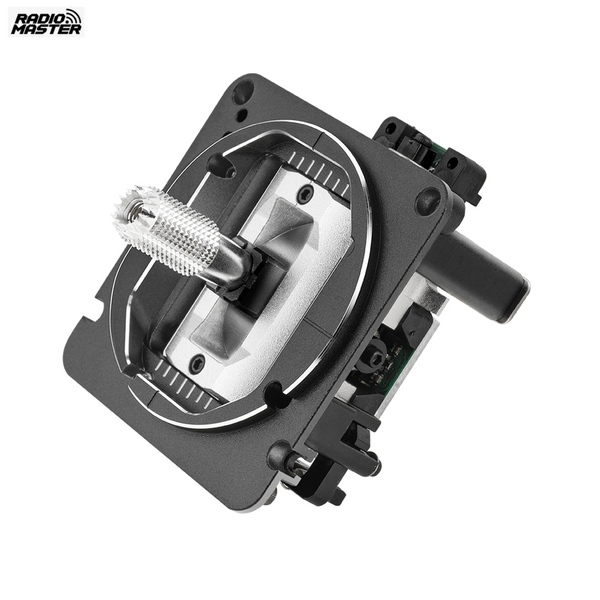

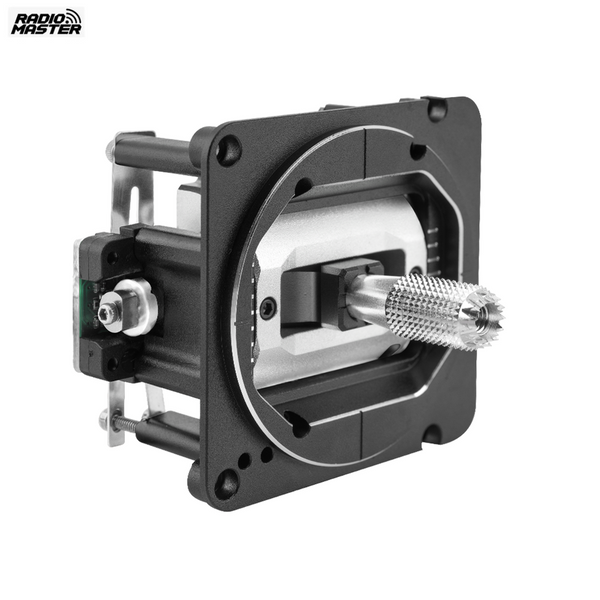

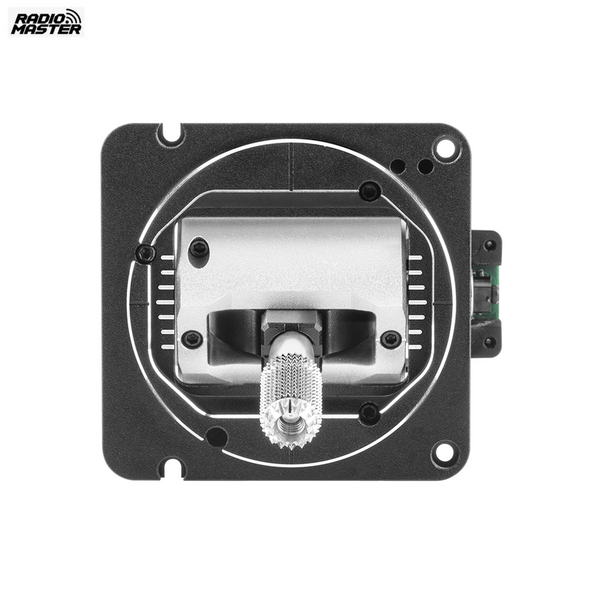

Radiomaster AG02 CNC Hall Gimbals for TX16S & Boxer Radio (Black Left and Right)

The AG02 gimbals are precision-engineered from machined aluminium, offering adjustable travel on both vertical and horizontal axis for highly responsive, customizable control. A redesigned, lightweight structure reduces rotational inertia by 21.6% compared to the previous generation, delivering smoother, faster stick input for improved response.

Equipped with advanced Hall effect sensors, the AG02 provides low-noise, rapid response, and exceptional accuracy. The anodized aluminum finish—available in Black offers durability with a refined, professional look.

Features

·       Full Aluminum Construction: Key structural areas are optimized to reduce rotational inertia by over 20% while maintaining rigidity, delivering smoother and more responsive control.

·       Next-Generation Low-Noise Hall Sensors: Offer ultra-fast response without compromising accuracy or stability.

·       Adjustable Travel:  Vertical and horizontal Travel adjustment for the perfect feel for any pilot.

·       Quad precision bearings: For unparalleled stick feel.

·       100% Mounting Compatibility with Previous Generations: If you already use full-size RadioMaster gimbals, the AG02 can be directly installed as an upgrade—no modifications required.

Specifications

·       Item: AG02 CNC Hall Gimbals Set

·       Sensor Type: Hall Analog

·       Operating Voltage: DC 3.3V

·       X-Axis Travel Adjustment Range: 30° – 56°

·       Y-Axis Travel Adjustment Range: 38° – 54°

·       Throttle Mode Switch (Mode 1/2) Without Disassembly: Supported

·       Spring Tension Adjustment Without Disassembly: Supported

·       Quad Ball Bearings: Yes

·       Operating Temperature Range: -20°C to +85°C

·       Dimensions (Excluding Stick Ends): 53 × 53 × 33.3 mm

·       Weight: 73 g ± 1 g (per unit)

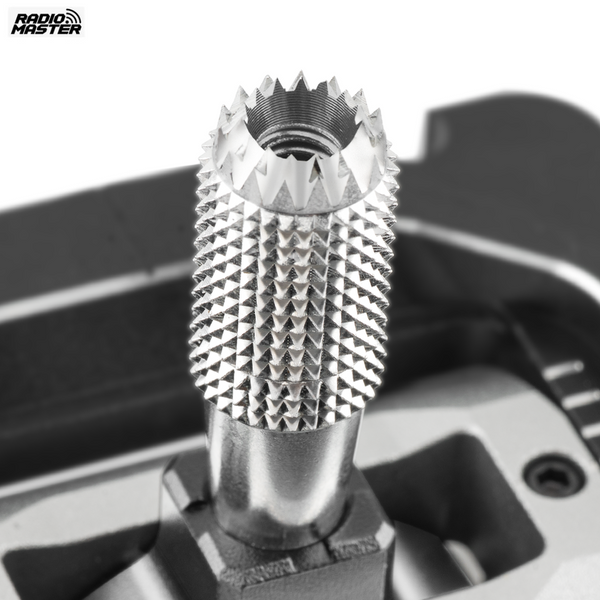

·       Gimbal Sticks: M4

Dimensions

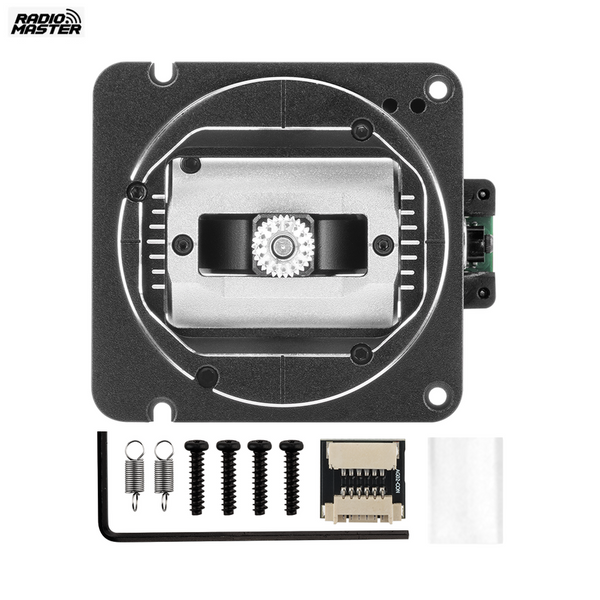

Package Includes

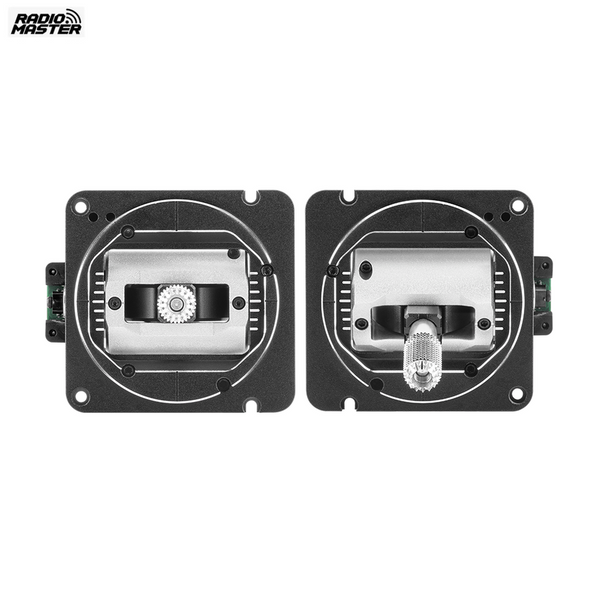

·       1 Pair of AG02 CNC Hall Sensor Gimbals

·       4 * High Tension Springs

·       2 * GH1.25-SH1.25 adapter board (Boxer/TX16sMKII)

·       8 * PB2.3*10 Mounting Screws

·       2 * Hex Wrench

·       1 * User Manual
