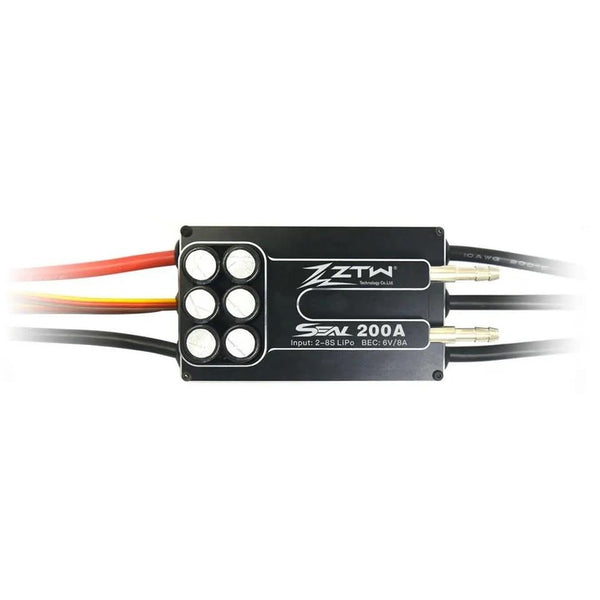

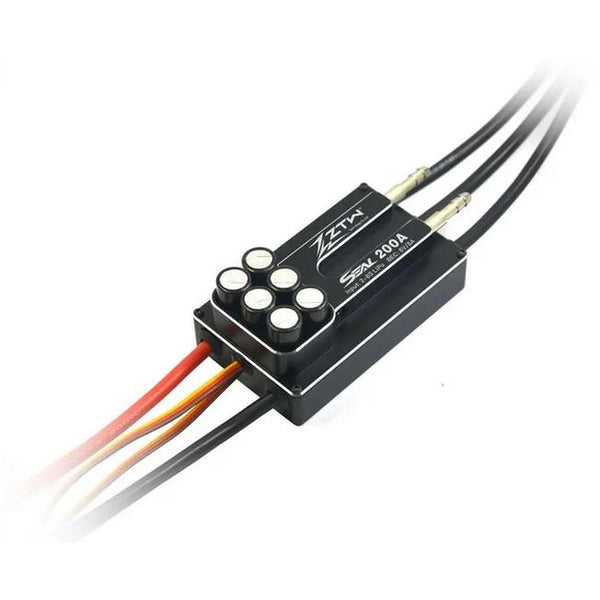

ZTW Seal 200A V2 Brushless ESC Waterproof BEC 2-8S Speed Controller

Hobby Square Singapore

Regular price $195.00

Features

The ZTW SEAL Series is designed specifically for RC Boat applications, featuring a waterproof design. They are constructed using aluminum, adding an attractive look and ensuring enhanced durability compared to its competition. The 200A ESC includes two water cooling pipes as well as customized heat sinks. The 200A ESC also offers a built in BEC, eliminating the need for an additional battery pack to operate the servo. In order to protect the boat, the ESC offers a power reduction when too hot and an optional Low Voltage Cutoff.

Specifications

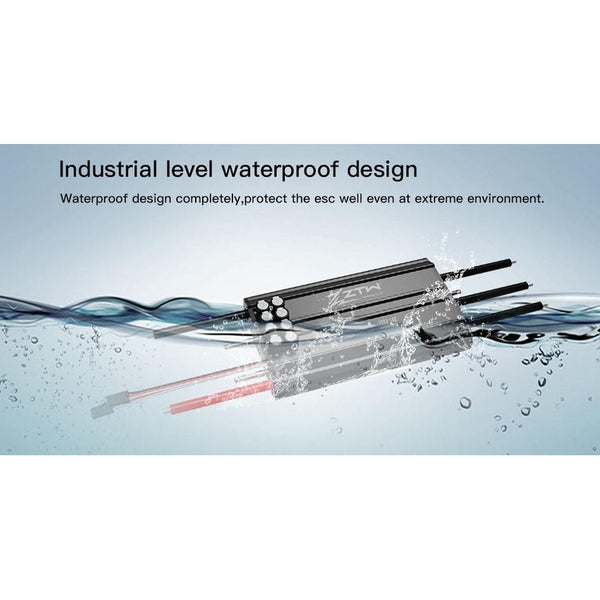

  • Waterproof design (rates as IP 67) allows this ESC to work in wet conditions.
  • Continuous Current (A): 200Amps
  • Burst Current (A): 300Amps
  • Voltage 5-24NiMH : 2s to 8s Lipo

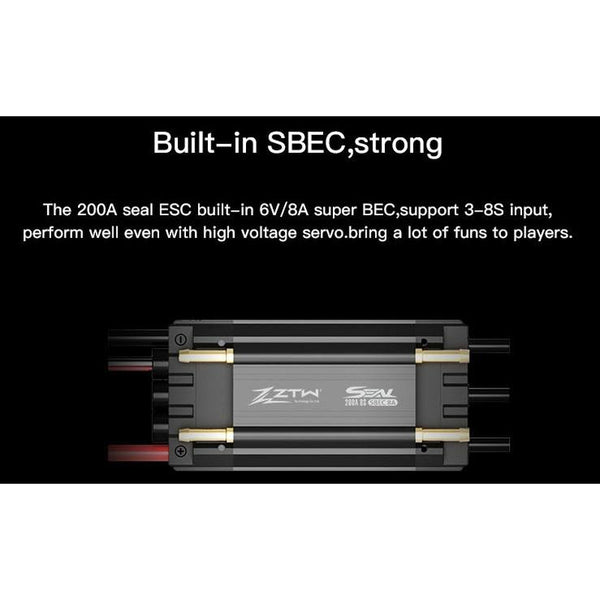

  • Battery Eliminator Circuit (BEC) output: 6 volts, 8 amps
  • Power Wire: 10 gauge 160mm-Red/160mm-Black
  • Motor Wire: 10 gauge 160mm-Black
  • Optional programing with LCD programming card.
  • Throttle works in both forward and reverse.
  • Case dimensions (not including wires):
  • Length: 93mm (3.66")
  • Width: 56mm (2.21")
  • Height: 41mm (1.62") from bottom to top of capacitors.
  • Weight: 350g (12.34Oz)
Product Item   SEAL200A SBEC 8A 8S
Model Number    6200200
Form Brushed / Brushless Brushless
  HV / Normal HV
Hardware Parameters Continuous Current (A) 200A
  Burst Current(A) 300A
  Battery Cell (NiXX/Lipo) 5-24NC/2-8Lipo
  BEC output 6V/8A
Dimensions Length 49mm
  Width 97mm
  Height 27mm
  Weight 230g
Wire & Plug Power Wire 10#AWG,160mm-Red/160mm-Black
  Motor Wire 10#AWG,160mm-Black
  Signal Wire 1 (Brown/Red/Orange)60C,add a common JR male connector at the end of 330mm wire
  Signal Wire 2
  Power Plug (Yes/No) no
Parameter programming Transmitter  yes
  Jumper  programming card
  LCD programming card yes
  WiFi programming card yes
  USB adapter yes
Firmware Upgrade Firmware online
(Yes/No)
yes



Prog. Item

Tone of value


Prog.Item
BEEP- BEEP-
BEEP-
BEEP-
BEEP-BEEP-
BEEP-
BEEP-  BEEP-
BEEP-
BEEP— BEEP—
BEEP-
BEEP—
BEEP-
BEEP-
BEEP—
BEEP-
BEEP-
BEEP-
BEEP—
BEEP-
BEEP-
BEEP-
BEEP-
  1 short BEEP 2 short BEEP 3 short BEEP 4 short BEEP 1 long BEEP 1 long BEEP & 1 short BEEP 1 long BEEP & 2 short BEEPs 1 long BEEP & 3 short BEEPs 1 long BEEP & 4 short BEEPs
  Brake Type Brake OFF Soft Brake  Mid Brake  Hard Brake
  Battery Type NiCd/NiMH LiPo LiFe
  Cut Off Voltage Threshold 2.8V/50% 3.0V/60% 3.2V/65% No Protection
  Restore Factory Setup Defaults Restore
  Motor Timing Auto 15° 22° 30°
  Motor Rotation Forward Reverse
  Start Up Strength 10% 15% 20% 25% 30% 35% 40% 45% 50%
  Low Voltage Cut Off Type Reduce Power Cut Off  Power
Default Brake Type:  Brake Off
Battery Type: LiPo with Automatic Cell detective
Cut Off Voltage Threshold:      3.0V/60%
Motor Timing:  Auto
Motor Rotation:  Forward
Start Up Strength:  30%
Low Voltage Cut Off Type:   Reduce Power
