SKYRC Digital Pitch Gauge (DPG-010)

Hobby Square Singapore

Regular price $28.72


The digital pitch gauge is designed for application in model helicopters and serves to measure the rotor blade pitch value.

The built in digital gyroscopic sensor is capable of detecting pitch angle, with result displayed through LCD screen, providing a simple and precise way of measuring pitch angle.


  • Large LCD for easy reading
  • Up to 700 mm blades (Suitable for 250 to 700 size helicopters)
  • Fast and accurate measurement
  • Zero function
  • Auto rotating display
  • Auto power-off (Power shuts down after 20 minutes without any movement)

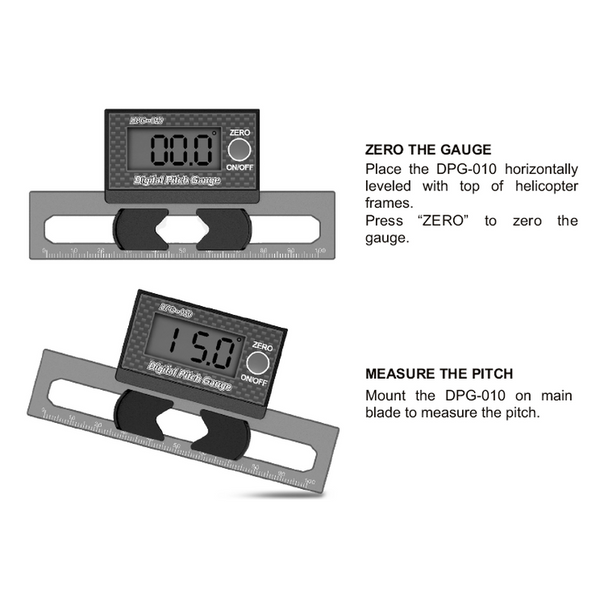

Press “POWER” button for about two seconds to turn on the power. For correct pitch measurements, DPG-010 digital pitch gauge must be zeroed before being used. Press “ZERO” button once to zero the gauge.

Please refer to the below instruction to understand how to use DPG-010. After used, Press “POWER” button for about two seconds to turn off.


  • Body Dimension: 113x56x14mm
  • Suitable blade width: 20mm~75mm
  • Detectable pitch range: ±90°
  • Temperature: 0~40°C
  • Resolution: 0.1°
  • Current consumption: 2.8mA
  • Battery: CR2032 Lithium X2
  • Weight (including battery): 40g
  • Aluminum blade clamp


  • 1 x SKYRC Digital Pitch Gauge (DPG-010)
