MKS HBL980 Brushless Titanium Gear High Speed Digital Servo (High Voltage)

MKS HBL980 Brushless Titanium Gear High Speed Digital Servo (High Voltage)

Hobby Square Singapore

$199.00

Details

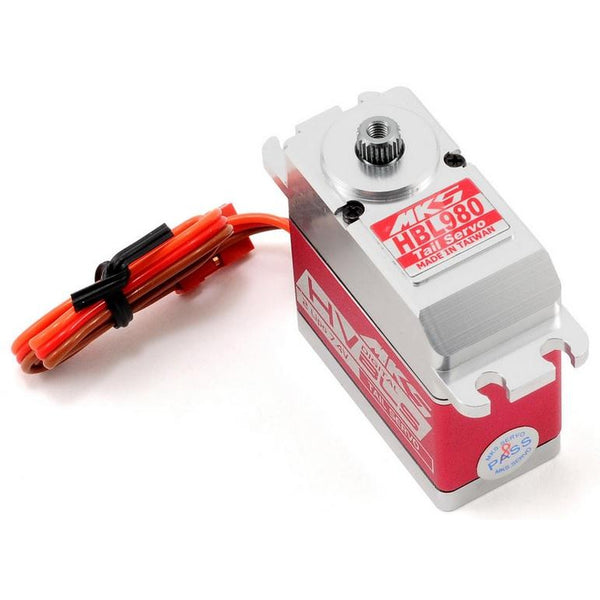

  • This is the MKS HBL980 Brushless, Titanium Gear, High Speed, High Voltage Digital Servo.

Specifications

  • Dead band: 0.0008ms (Default)
  • Control System: +Pulse Width Control
  • Working frequency: 760μs / 560hz
  • (RX) Required Pulse: 3.5 ~ 7.2 Volt Peak to Peak Square Wave
  • Operating Voltage: 6.0 ~ 7.2 V DC
  • Operating Temperature Range: -10 to + 60 Degree C
  • Operating Speed (6.0V): 0.04 sec/60° degrees at no load
  • Operating Speed (7.4V): 0.036 sec/60° degrees at no load
  • Stall Torque (6.0V): 62.5 oz/in (4.5 kg.cm)
  • Stall Torque (6.0V): 77.77 oz/in (5.6 kg.cm)
  • 360° Modifiable: NO
  • Motor Type: Brushless Motor
  • Potentiometer Drive: Indirect Drive
  • Bearing Type: Dual Ball Bearings
  • Gear Type: Titanium Gears
  • Programmable: NO
  • Connector Wire Length: 24.0cm (9.4")

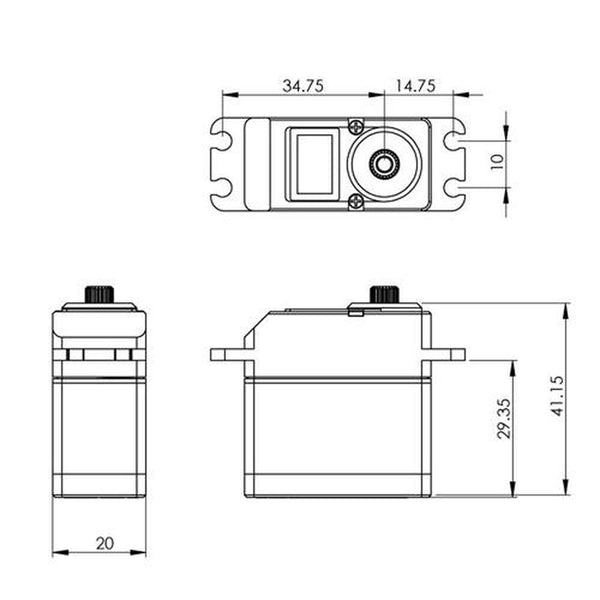

  • Dimensions: 40x20x40mm (1.57x0.79x1.50")
  • Weight: 70.2g (2.48 oz)

Including

  • 1 x MKS HBL980 Brushless Titanium Gear High Speed Digital Servo (High Voltage)
