DIATONE MAMBA F405 MK2 V2 Flight Controller W/ BLHeli_S F55_BLS 4in1 ESC Dshot 300-1200 3-6S for RC FPV Drone

Specifications (Flight Controller)

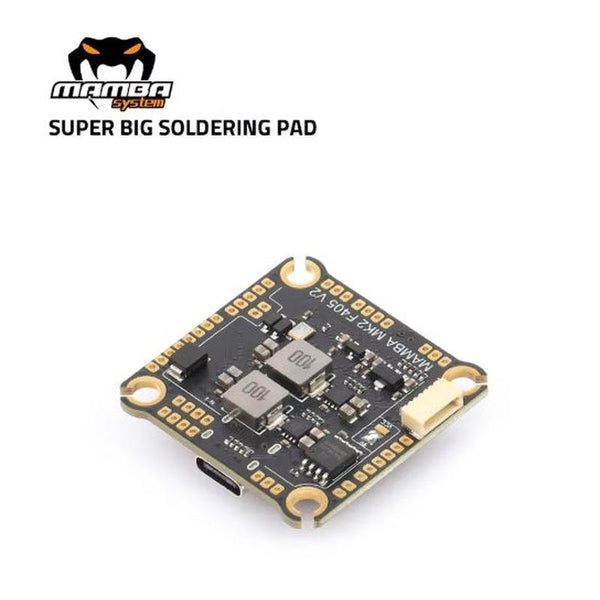

·         MAMBA F405MK2 V2

·         MCU: 168MHz STM32F405

·         GYRO: ICM-42688-P

·         Target：FURYF4OSD

·         OSD: Yes

·         Blacbox: 16M Flash Memory

·         Barometer: No

·         Uarts: 3 Set

·         I2C: Yes

·         F.Port: No

·         RSSI: Yes

·         Buzzer Pad: Yes

·         CURR Pad: Yes

·         ESC Signal: 4 Set

·         ESC Soft: Dshot300/600

·         ESC Telemetry: Yes

·         Power Led: Yes

·         LED Controller:BF LED

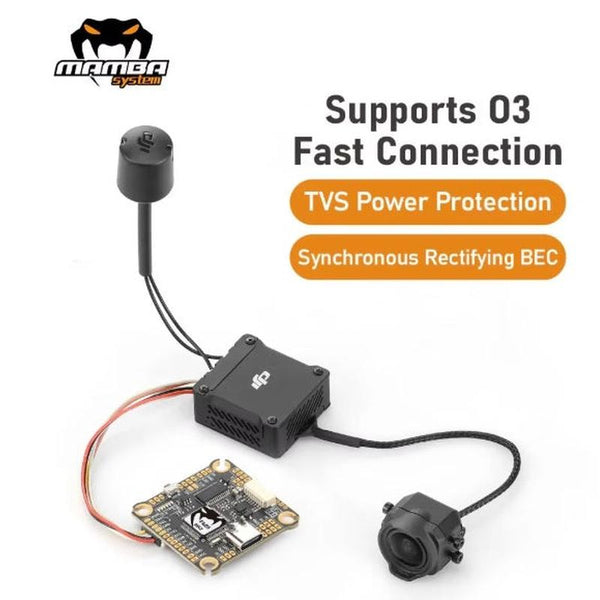

·         AIR UNIT Port: Yes

·         WIFI: No

·         VTX Switch: No

·         Receiver Protection: Yes

·         BEC Protection: Yes

·         TVS Protection: Yes

·         BEC:3.3V 0.5A& 5V 2A& 9V 2A

·         Input: 3~6S Lipo (12.6~25.2V)

·         Mounting size: 30.5mm/M3

Specifications (ESC)

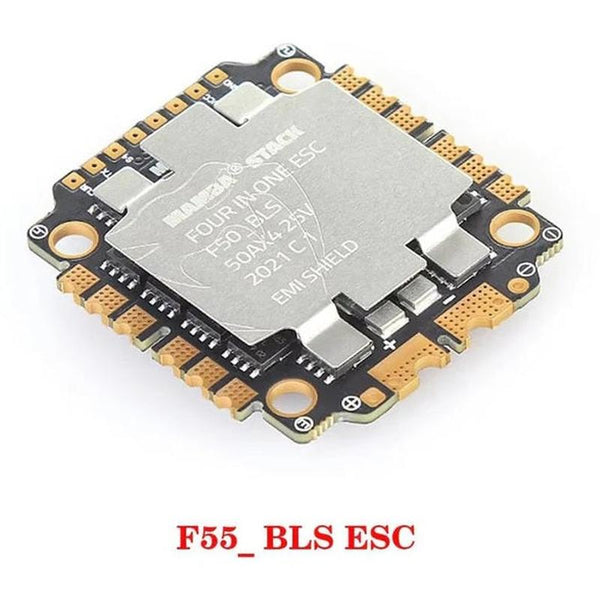

·         MAMBA F55_BLS

·         Input voltage: 4~6S Lipo (14.8V~25.2V)

·         Continue current:55A×4

·         Burst current 65A (10S)

·         BEC: No

·         Target：BLHeli_S CH40

·         SOFT: Dshot300/600

·         TVS Protection: No

·         MOUNTING: 30.5mm/M3

·         Supply :

·         High Frequency 1000uF/35V ×1

·         8pin sh1.0 ×2

·         AIR UNIT sh1.0 ×1

·         12AWG 100mm ×2

·         AMASS Original XT60×1

Including

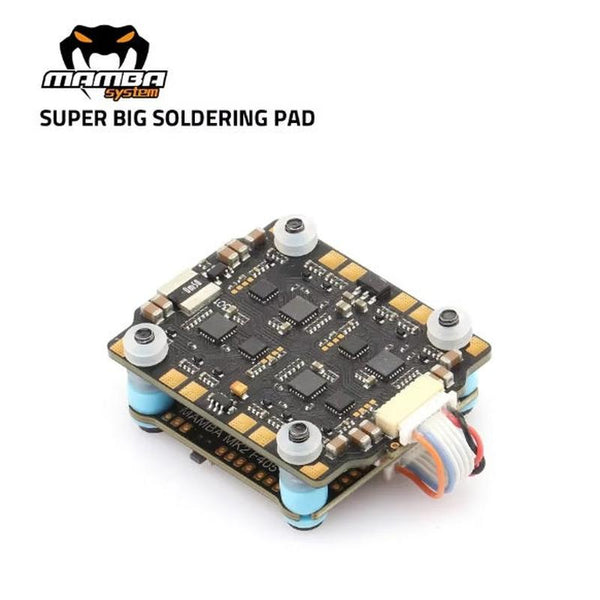

·         MAMBA F405MK2 V2 FC and

·         MAMBA F55 BLS 4-IN-1 ESC
